Task Sequence Steps – Install Software Updates

This post is part of our Task Sequence – Beyond the Docs series.

This step is simple in nature but one I’ve had the most issue troubleshooting. It’s pretty much always worked in my simple labs, but in complicated production environments, it has been a difficult time. I’ve placed some references to troubleshooting later on.

Task Sequence Steps – MS Docs

That last page was added more recently and really helps when you’re running into issues with this step. If you are running into problems, before you start googling, you’ll want to read that doc to get a good grasp of the process as well as the logs you’ll want to check out.

  • UpdatesDeployment.log
  • UpdatesHandler.log
  • UpdatesStore.log
  • wuahandler.log
  • WindowsUpdate.log

PowerShell

The Step

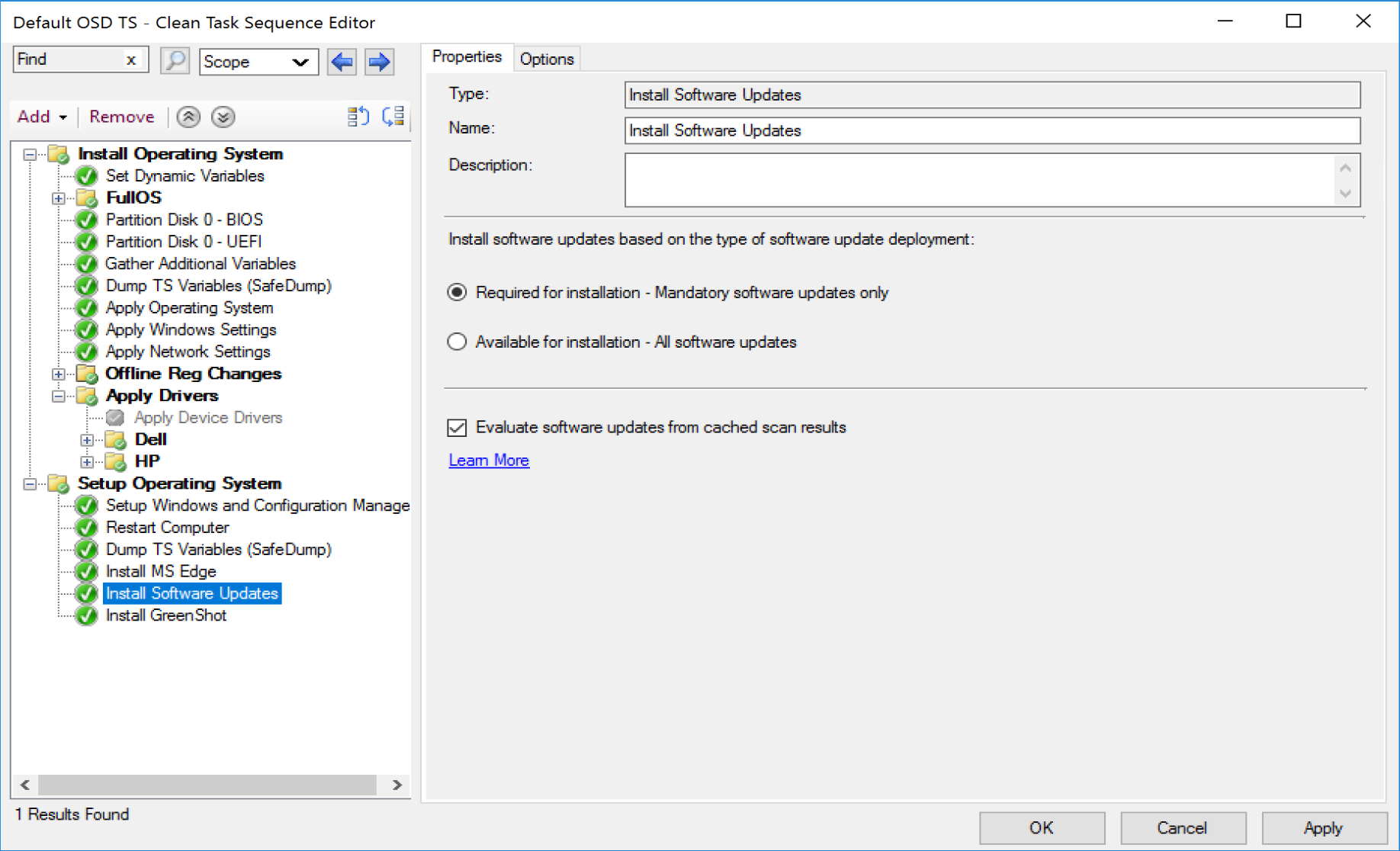

Install Software Update 1

For the software updates to install, they have to be deployed to the machine you’re building. If you’ve created an object, or are re-imaging a machine that has an object, you need to have the Updates deployed to a collection that machine is in.

If you’re deploying OSD to unknown computers, then you need to have updates deployed to the unknown computers collection.

Options

  • Required for installation – Mandatory software updates only.
    • This will install only updates that are deployed to this machine that are required, additional updates will not be applied.
  • Available for installation – All software updates
    • This will install any updates that are set to available and are deployed to the machine.

The Step is setting the variable SMSInstallUpdateTarget to mandatory or all based on the radio button you choose.

Demos

Demo 1 – No Updates Deployed to Machine

Machine has no updates that are needed during OSD. The Step still takes several minutes for it to compile all of the policy to determine there are no updates for the machine.

Install Software Update 2

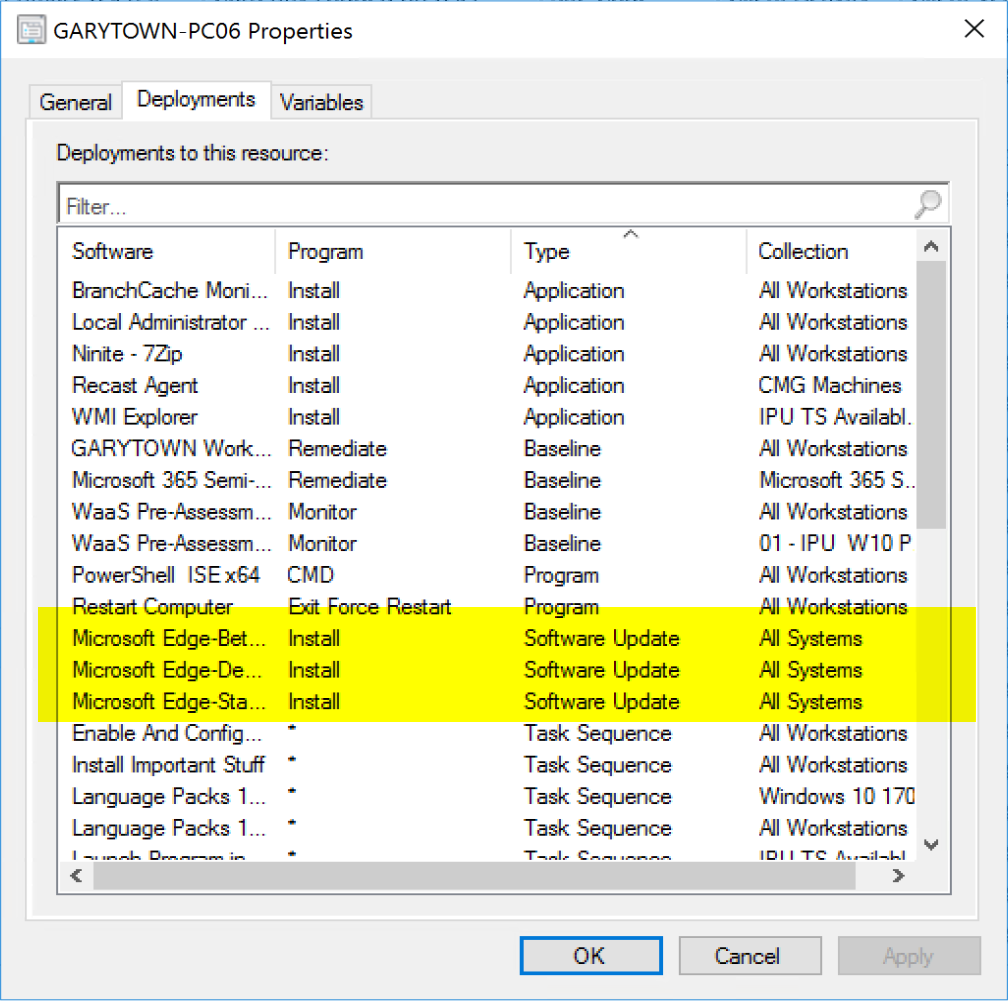

This machine has 3 software updates, but for Edge browser, which isn’t even installed at the point the install software update step runs.


Install Software Update 3

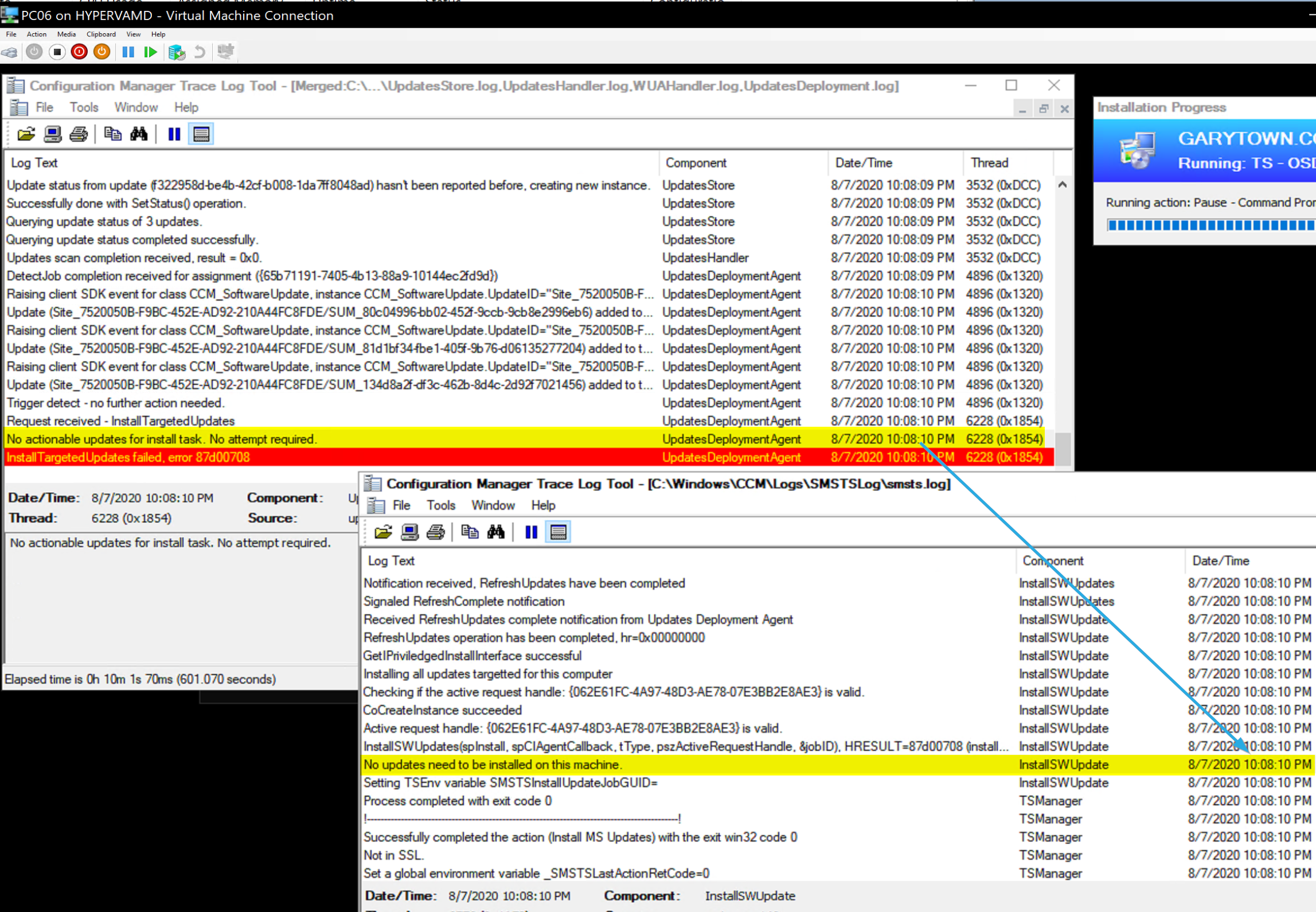

You can see from the logs during OSD, that it didn’t find any updates to apply.

Demo 2 & 3 – Available Updates Deployed

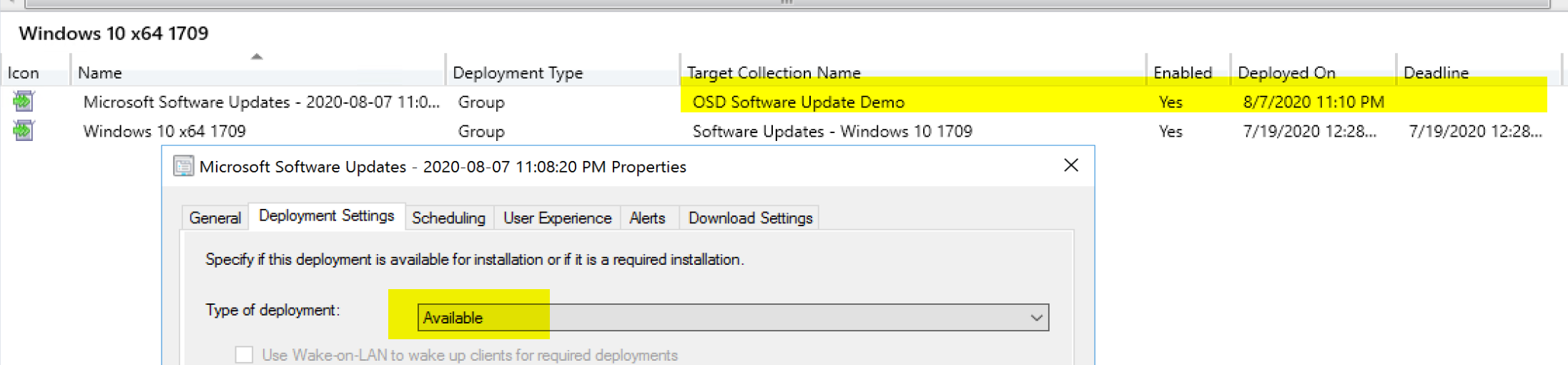

I’ve deployed several Windows 10 updates to the collection my demo machine is in and set it as an available deployment.


Install Software Update 9Install Software Update 4

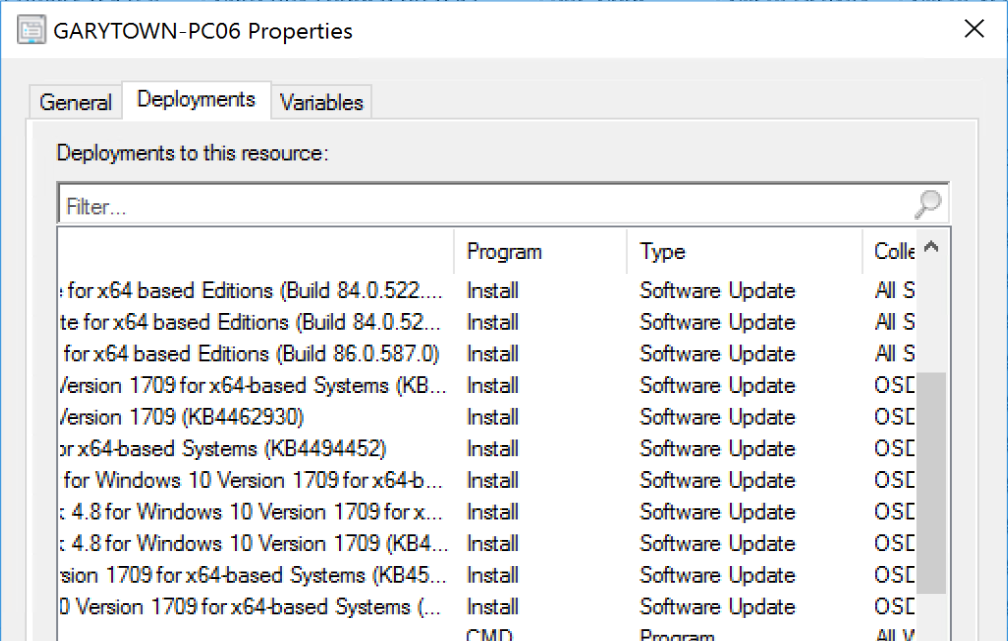

Here you can see several Windows 10 1709 updates are available to the machine, so during OSD, it should get patched

Demo 2 – TS Setup – Install Available

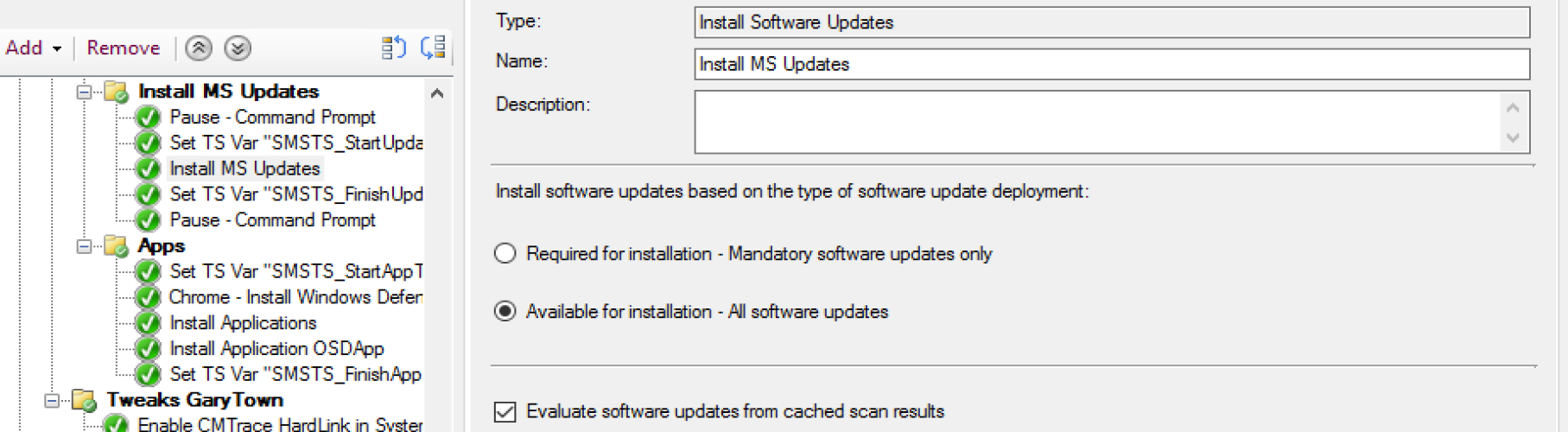

Machine has several updates available, and the TS is set to install all available Updates.


Install Software Update 8
Install Software Update 5

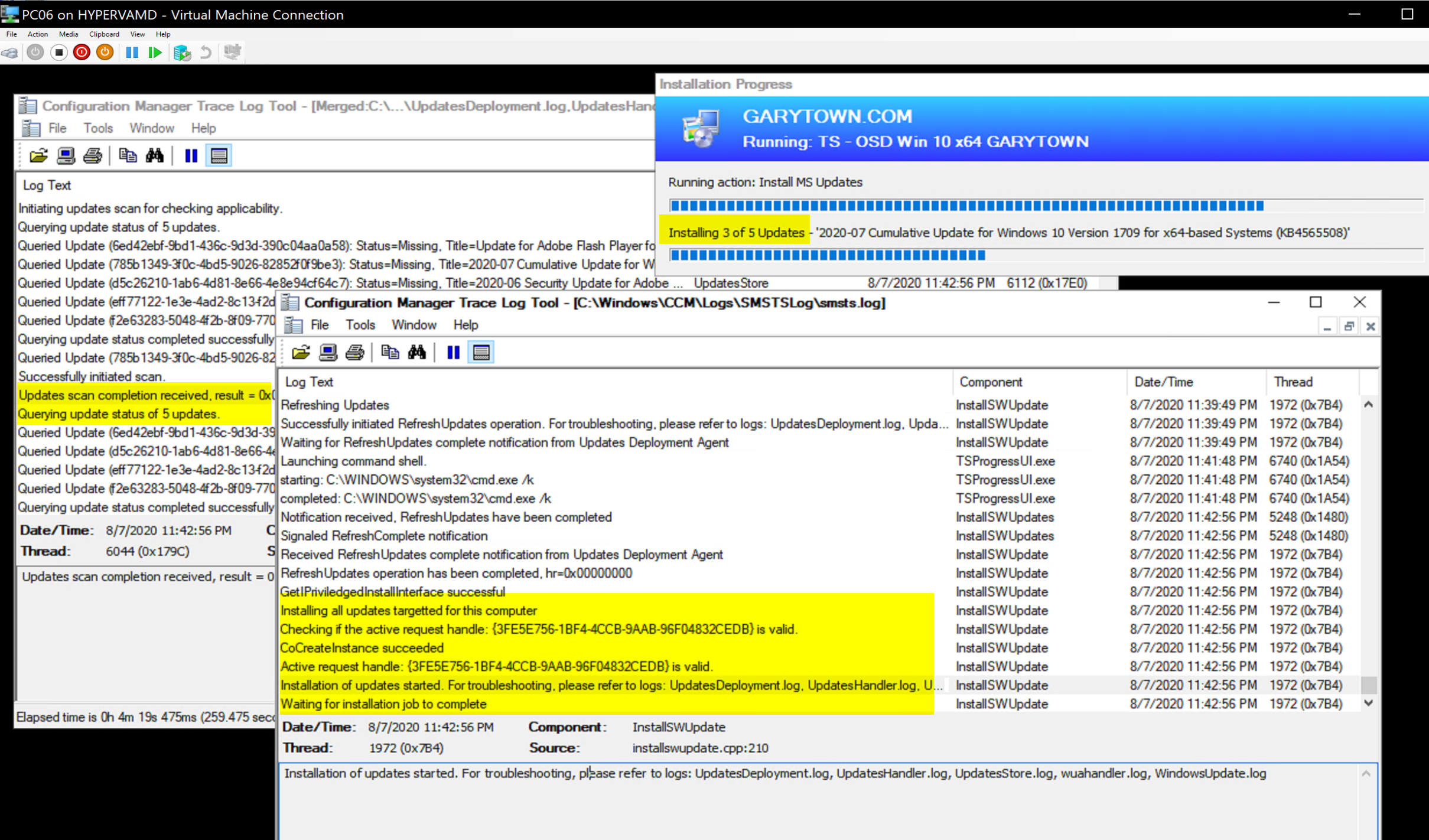

Nice, it’s installing. Another nice thing, the SMSTS.LOG file tells you the logs to monitor!

Demo 3 – TS Step – Install Required

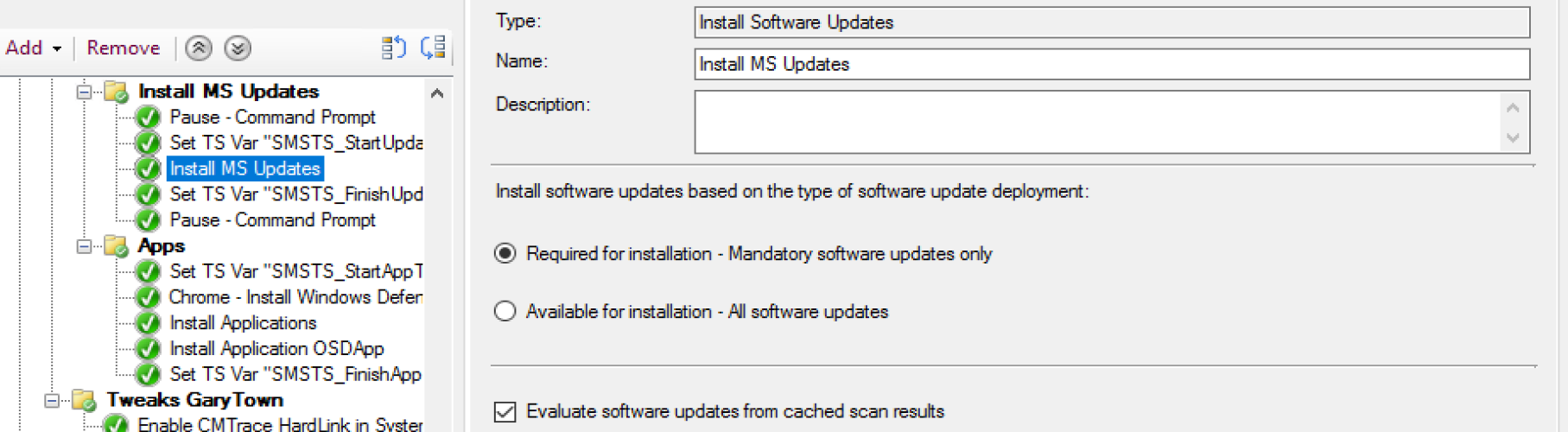

Machine has several updates available (same as last demo run) and the TS is set to install all required Updates.


Install Software Update 7Install Software Update 6

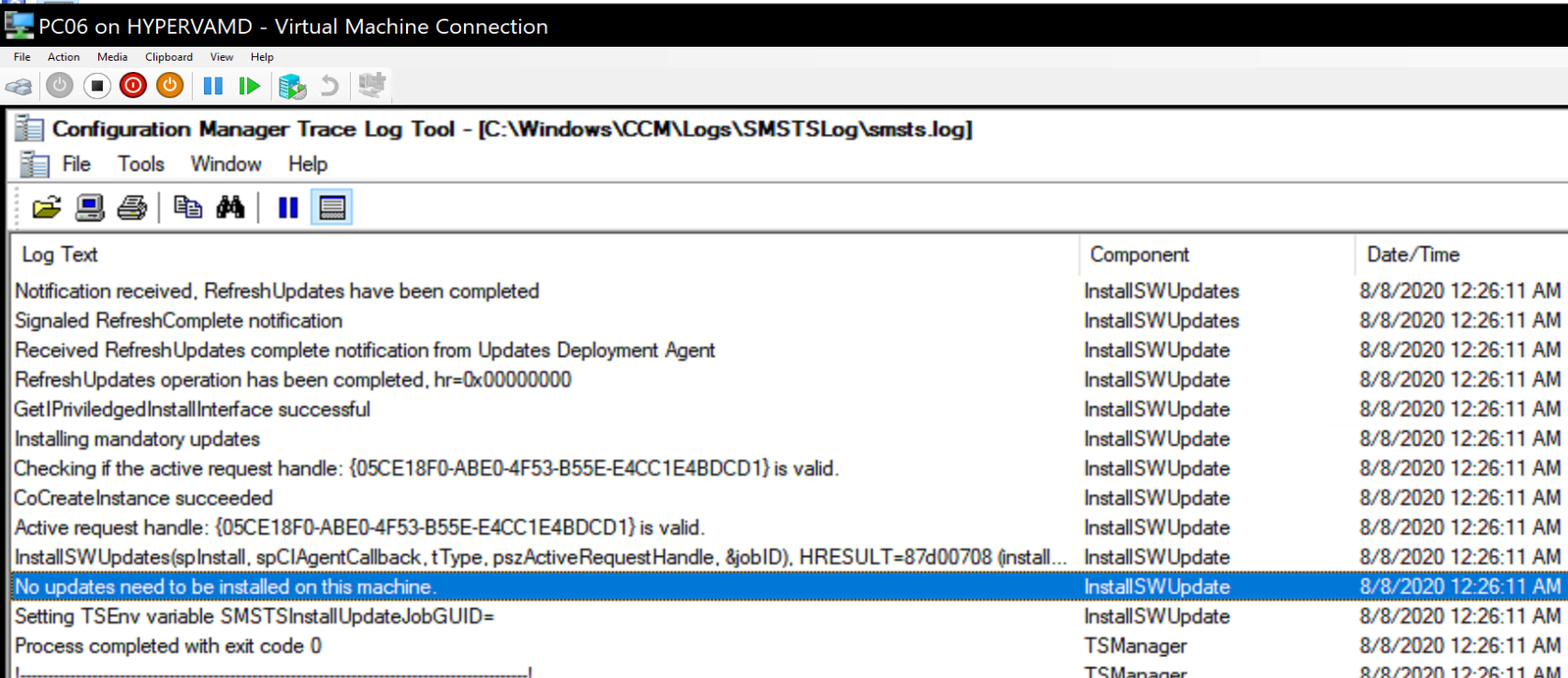

So, in this demo the only change was the TS Step going from available update to required updates. During the Task Sequence, it didn’t evaluate any of the available updates as required and skipped them all.

Demo 4 & 5 – Required Updates Deployed

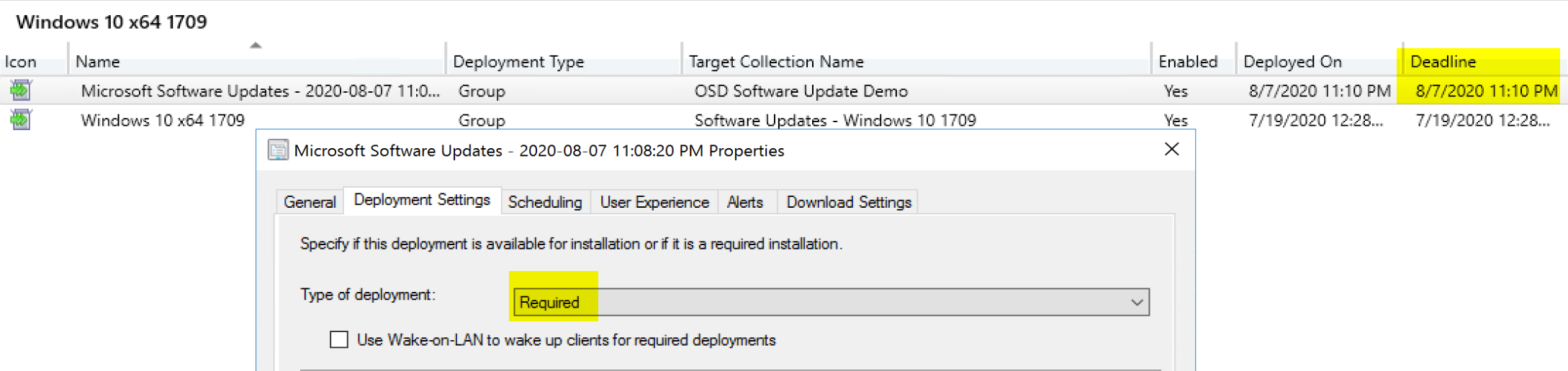

Let’s change the deployment from available to required and keep the task sequence to install required deployments.

Install Software Update 10

Demo 4 – TS Step Available

So this test, Required Deployment of Updates, and TS Step set to Available.
Ok… running test and boom, updates installing, which is what I was expecting.

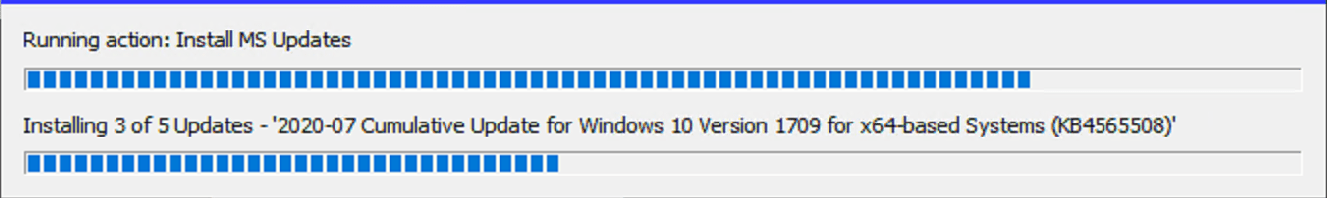

Install Software Update 11Install Software Update 14Install Software Update 15

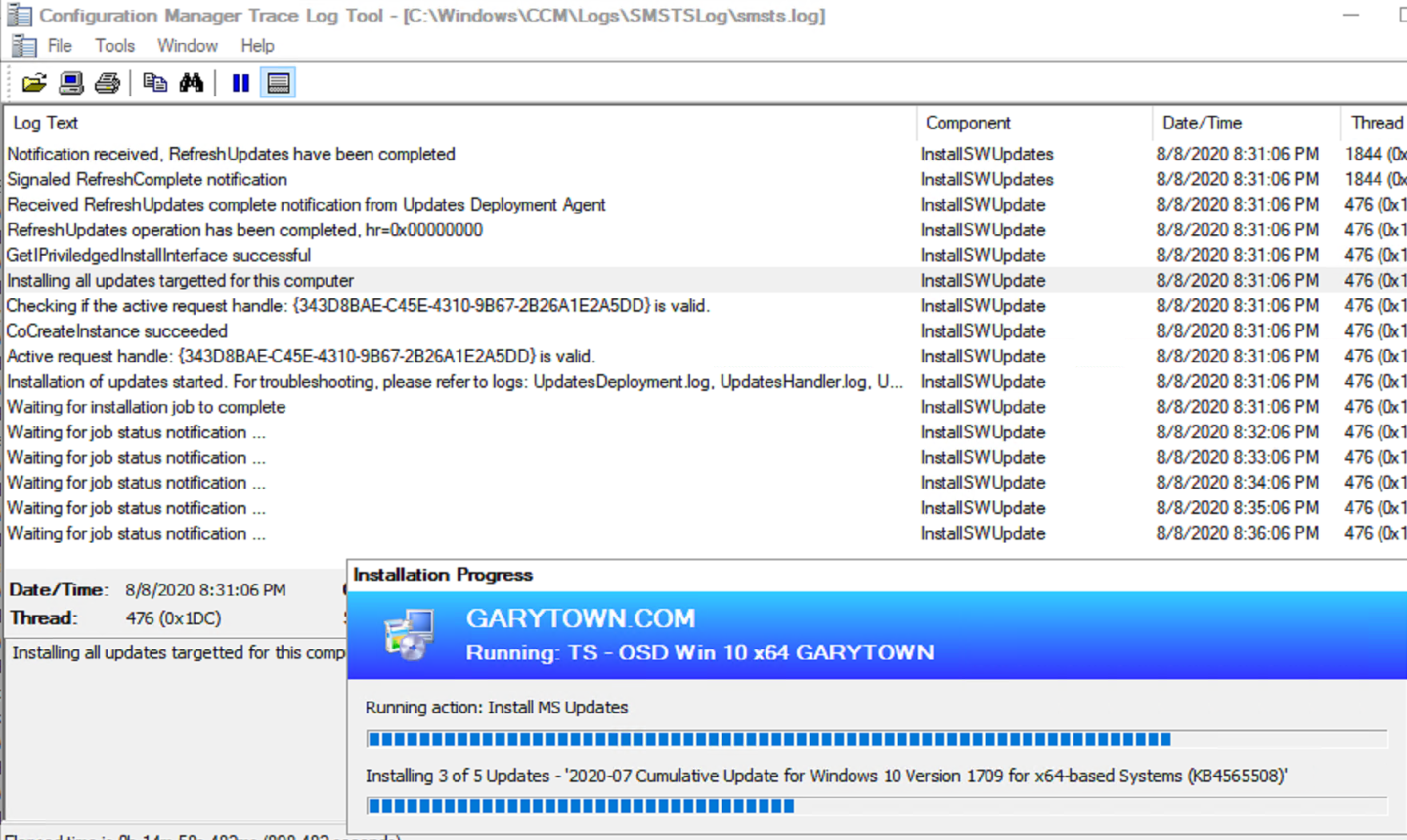

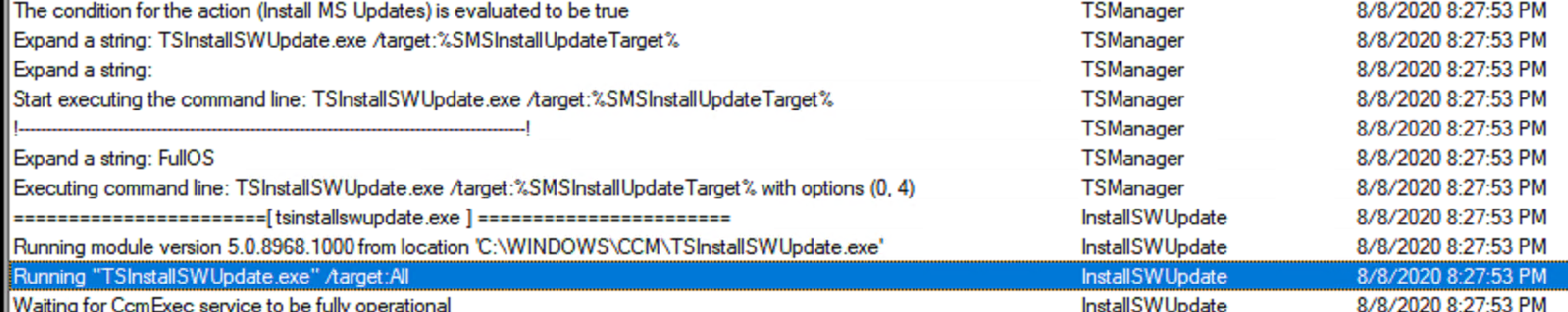

Here the log shows it is “Installing all updates targeted for this computer”

Demo 5 – TS Step Required

So this test, Required Deployment of Updates, and TS Step set to Required.

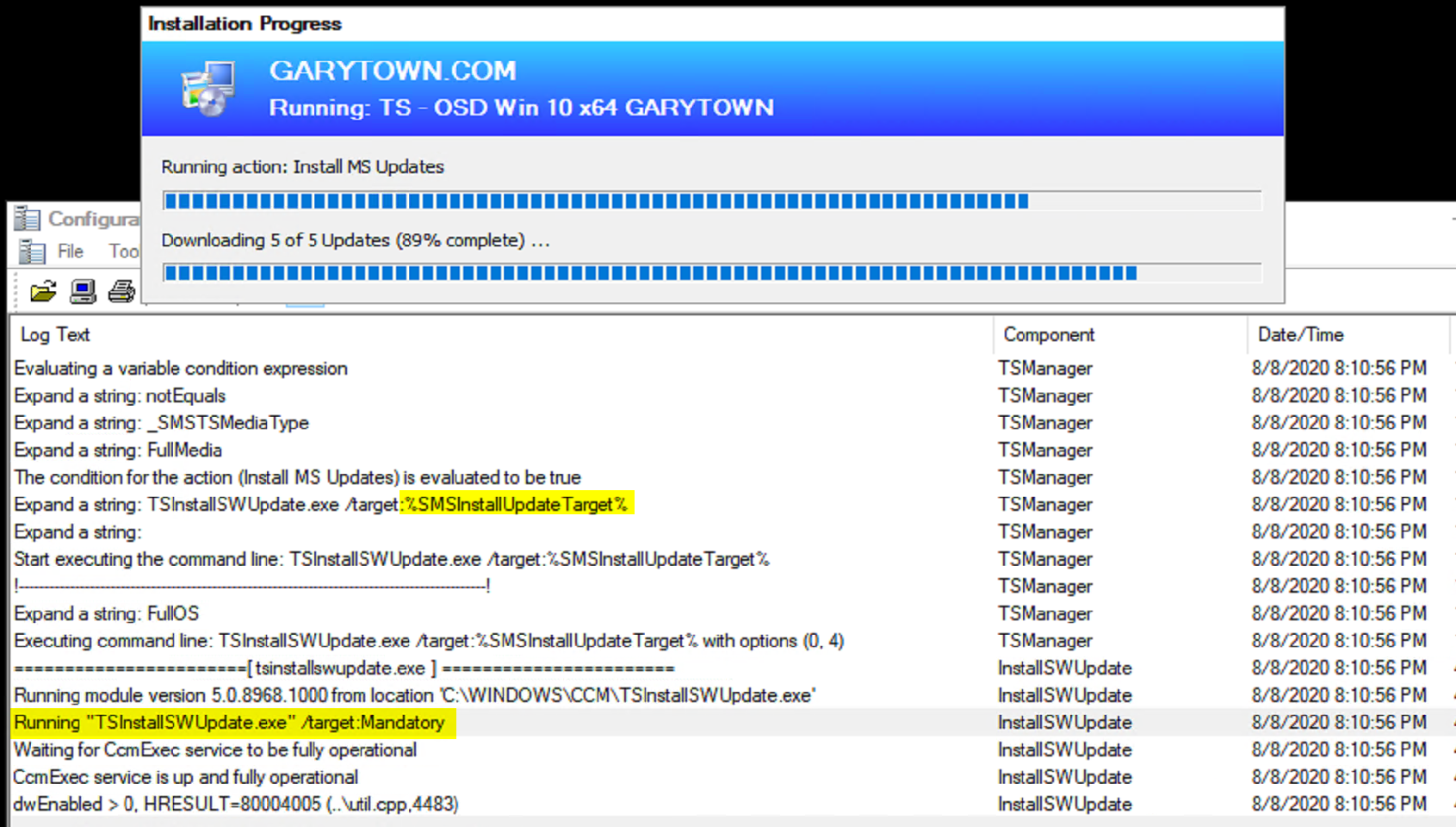

Install Software Update 12

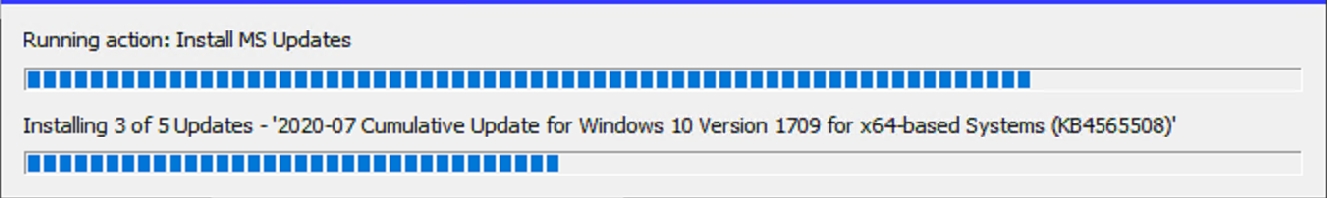

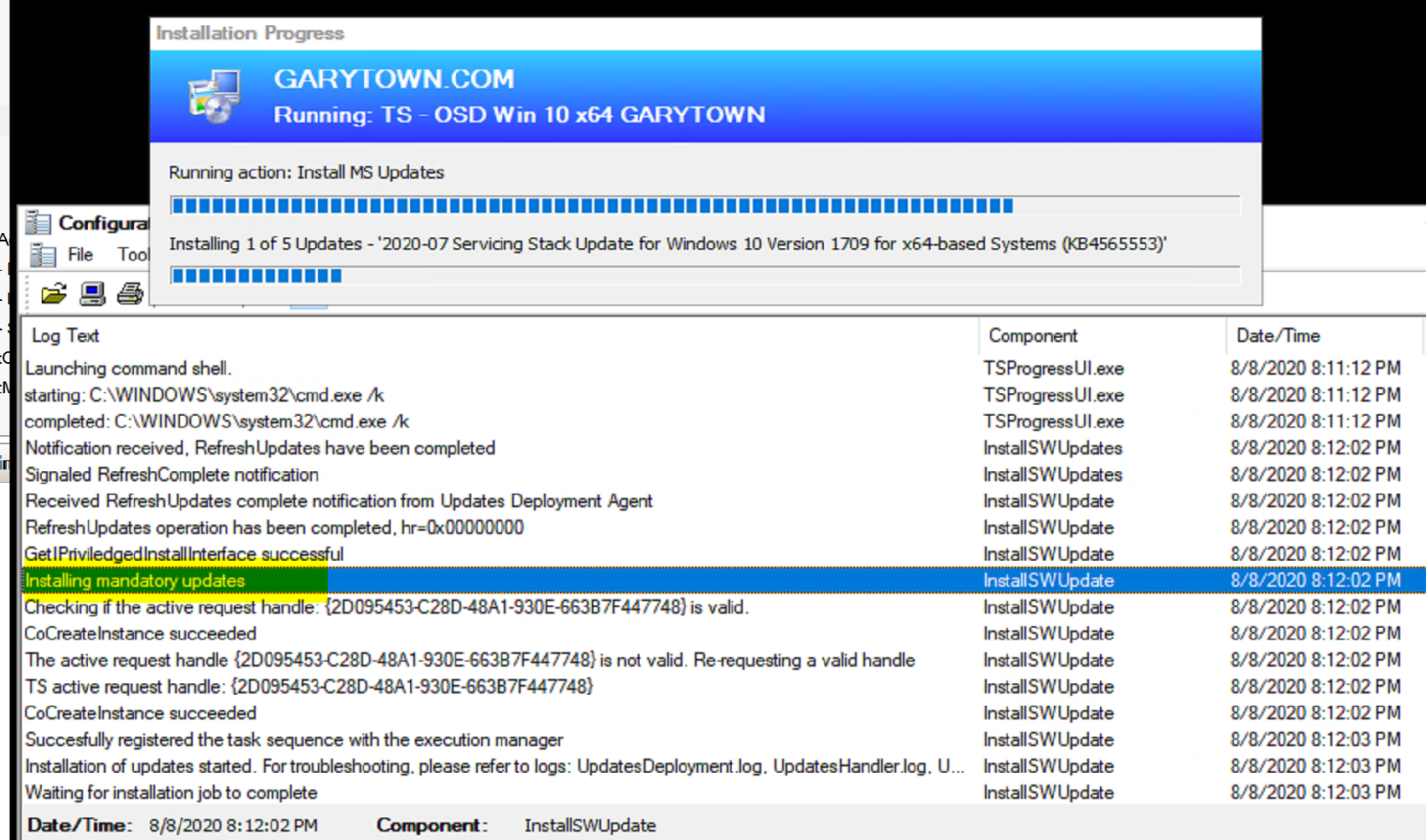

As we expected, it is installing the 5 required updates.


Install Software Update 13

Things to note from the Demos

  • SMSTSlog
    • When TS Step set to Required, the Log says “Installing mandatory updates”
    • When TS Step set to Available, the Log says “Installing all updates targeted for this computer”

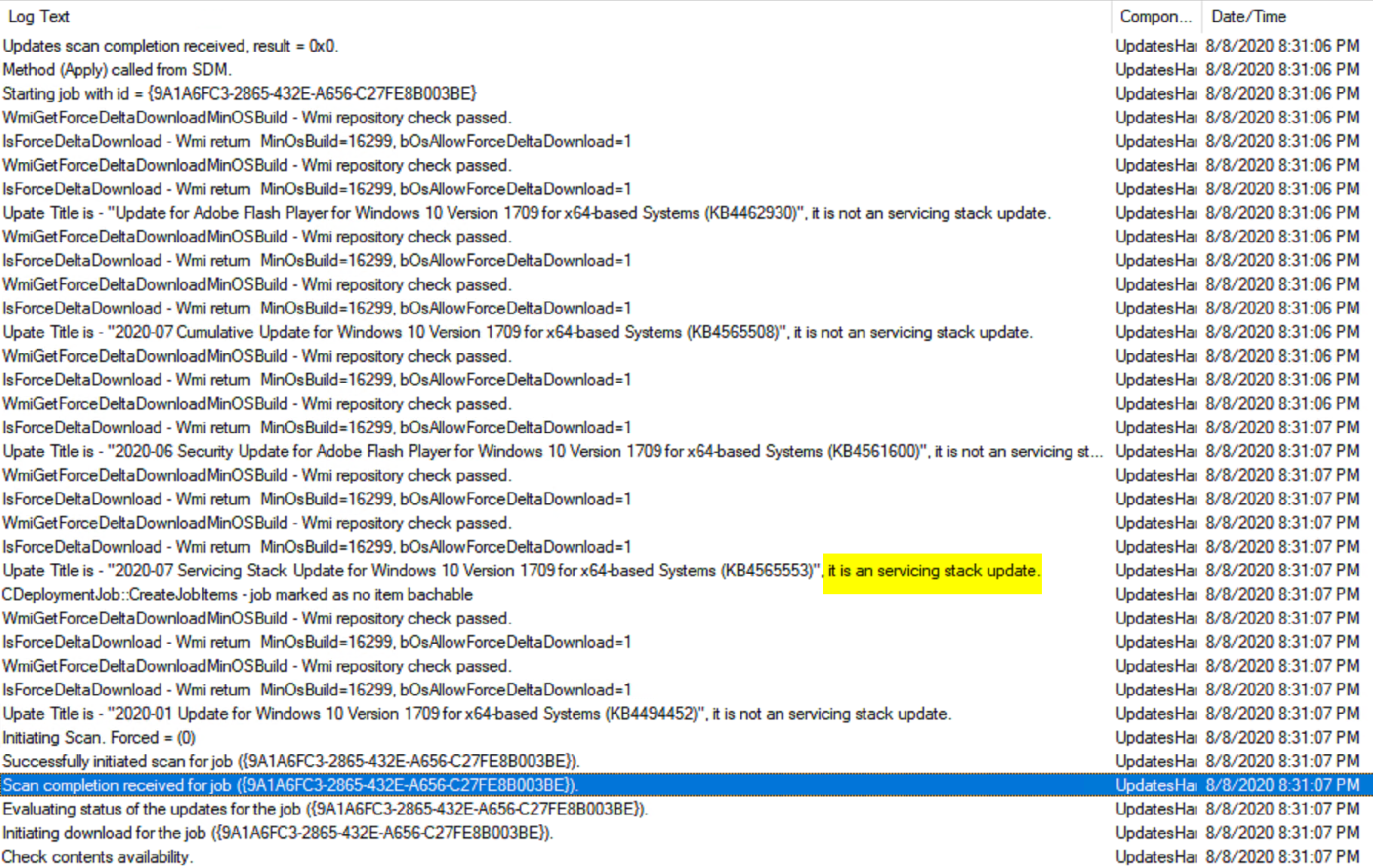

  • Install Order: The Updates Handler (UpdatesHandler.log) shows that the process keeps track of the updates and flags a servicing stack update, which will then apply that first.
    Install Software Update 16

Final Thoughts

Overall, this step is pretty robust, and if you have a smaller environment which you keep clean, you probably won’t run into any issues with this step. The biggest issue is ensuring that the updates you need are deployed to the machines you’re running task sequence on.

Find all of our Task Sequence – Beyond the Docs series posts here.
