Building a CM Lab - Domain Controller VM [1]

Series Post 1, Setting up the Domain Control, with DNS & DHCP

This post will be going over creating the Domain Controller for the Lab. This will be the basic setup, we'll be revisiting the Domain Controller later when we need to extend the schema and start adding additional users and groups into the mix, but for now, we're just going to get it functional, with DNS & DHCP. This post is 99% pictures, not much text.  If you have questions along the way, reach out via twitter.

Overview:

  • Domain Controller
  •   Name: DC.dev.recastsoftware.com
  •   LAN 1: Static IP (Internal Lab Network) 192.168.1.199
  •  Windows Roles: Domain Controller, DHCP, DNS
  •   C Drive = 100GB (1 Virtual Disk)
  •   Memory = 2GB
  •   CPU = 2 Cores

Virtual Machine Connection

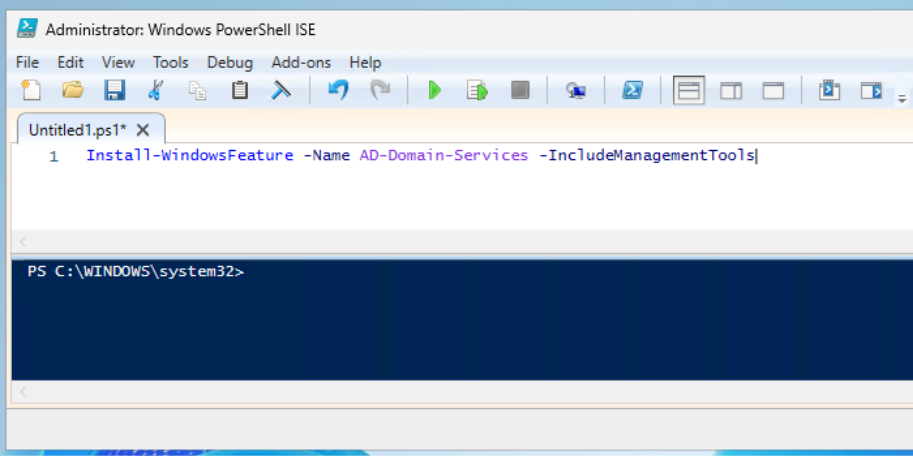

Installed the ADDS via PowerShell
Install-windowsfeature -name AD-domain-services -IncludeManagementTools [MS Docs]

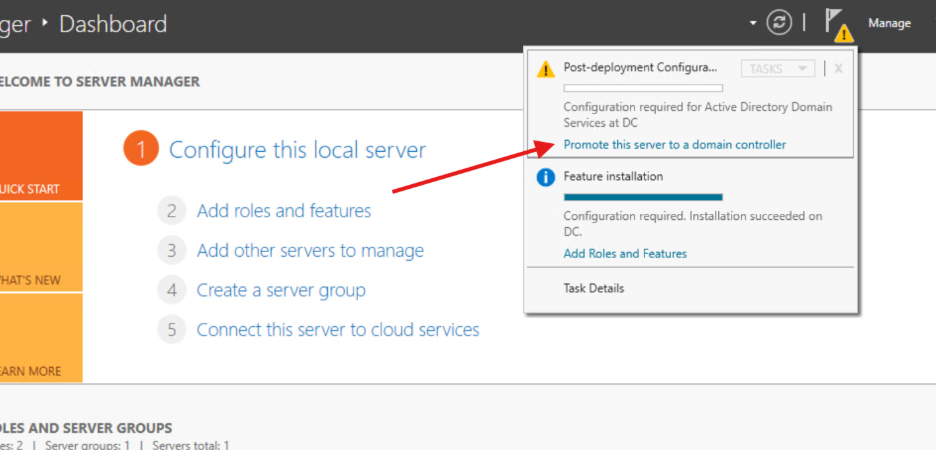

Once installed, you can run the Domain Controller Wizard [MS Docs]

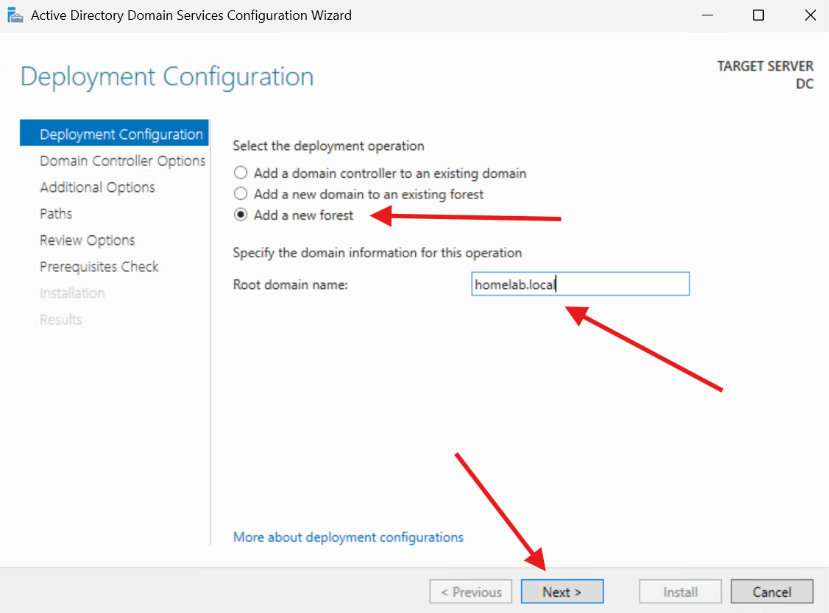

Active Directory Domain Services Configuration Wizard
Since this is a new domain, I'm picking Add a new forest
Active Directory Domain Services Configuration Wizard

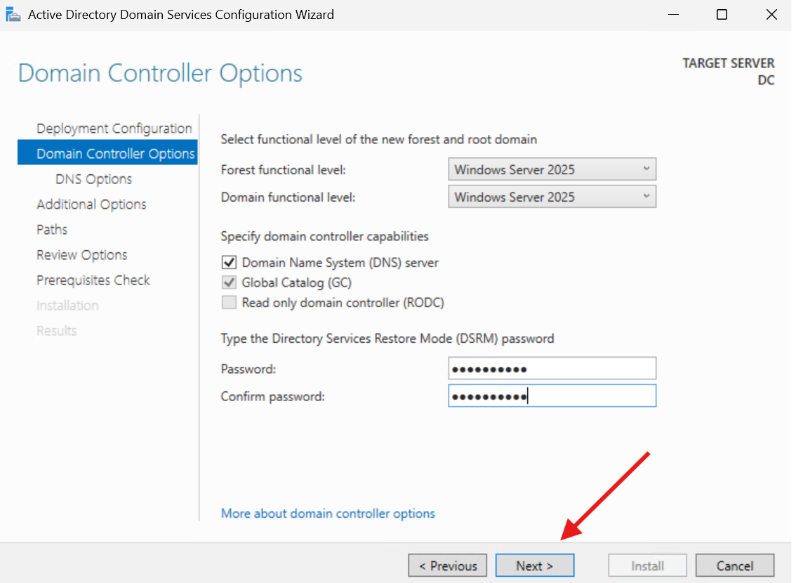

I choose to install DNS as well at this time, as this will be the DNS server for my lab.  I then pick a password and save it.
Active Directory Domain Service Configuration Wizard

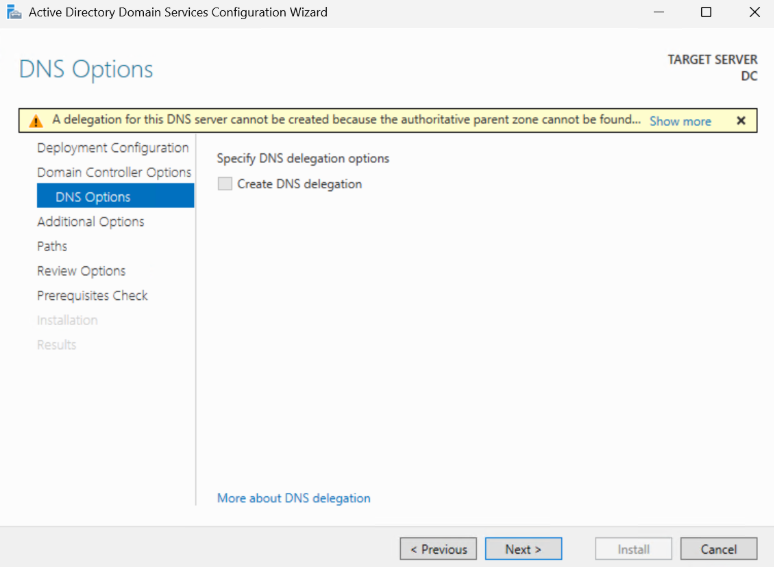

This is expected
Active Directory Domain Services Configuration Wizard

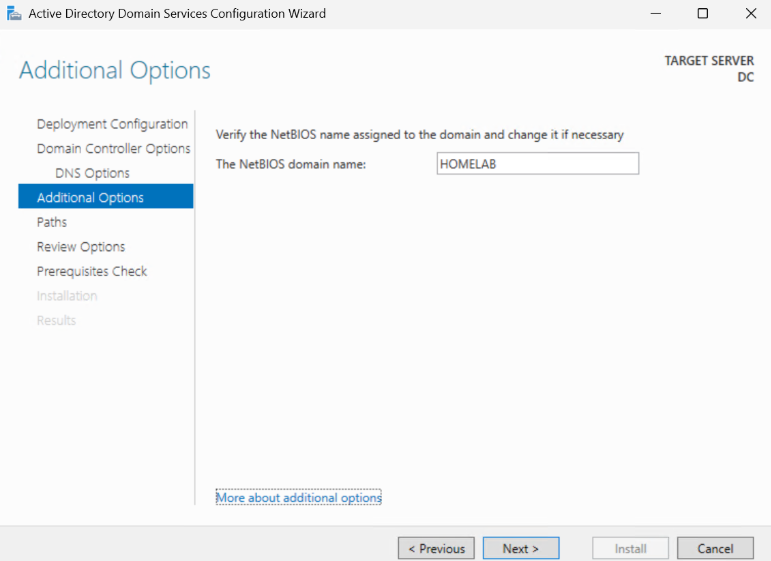

This field will auto populate based on your forest name

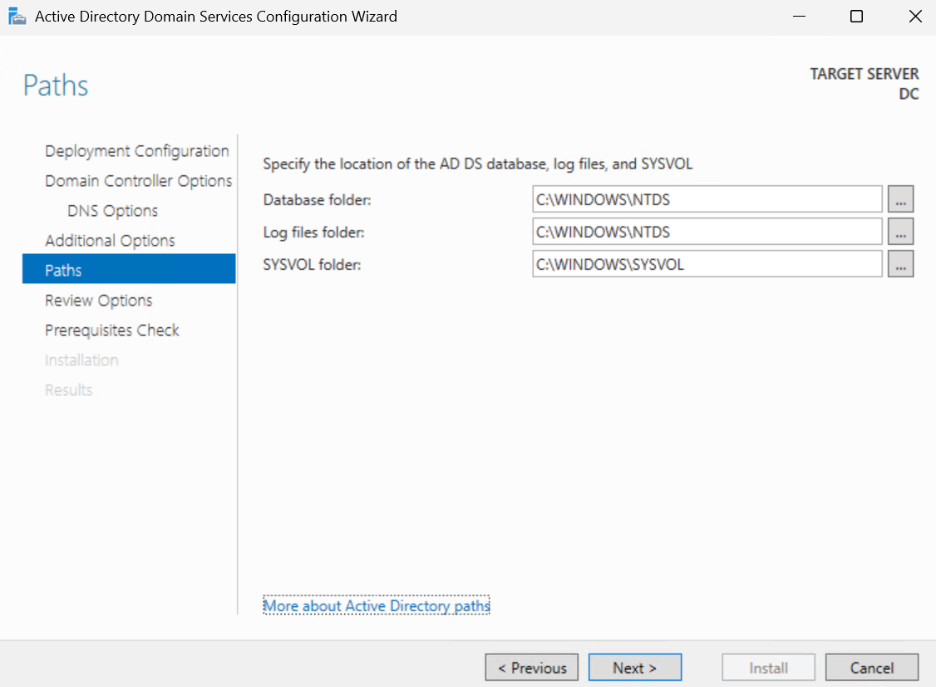

Active Directory Domain Services Configuration Wizard

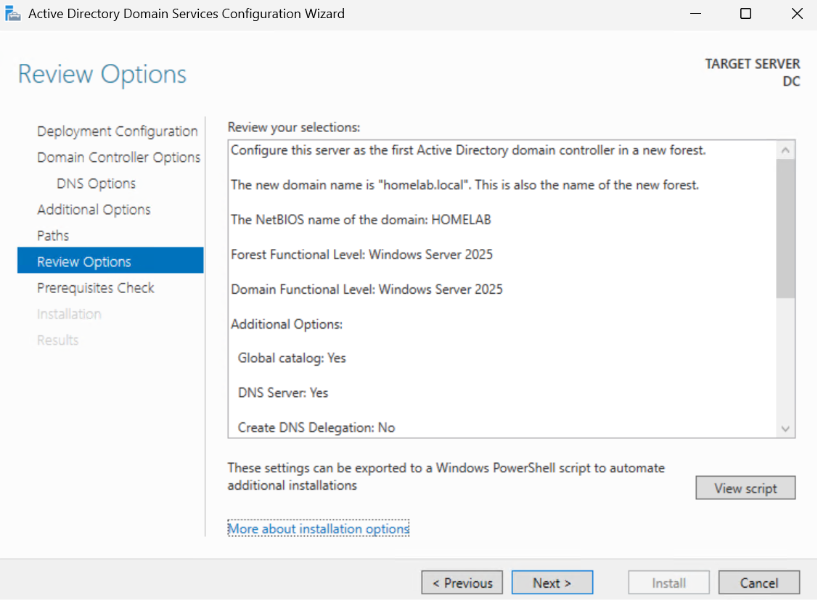

These are the defaults

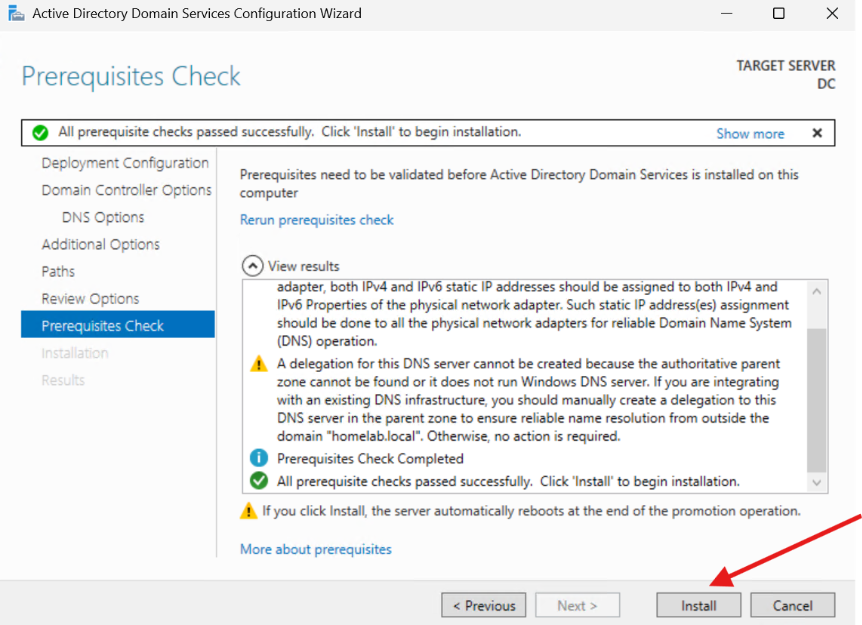

Active Directory Domain Services Configuration Wizard

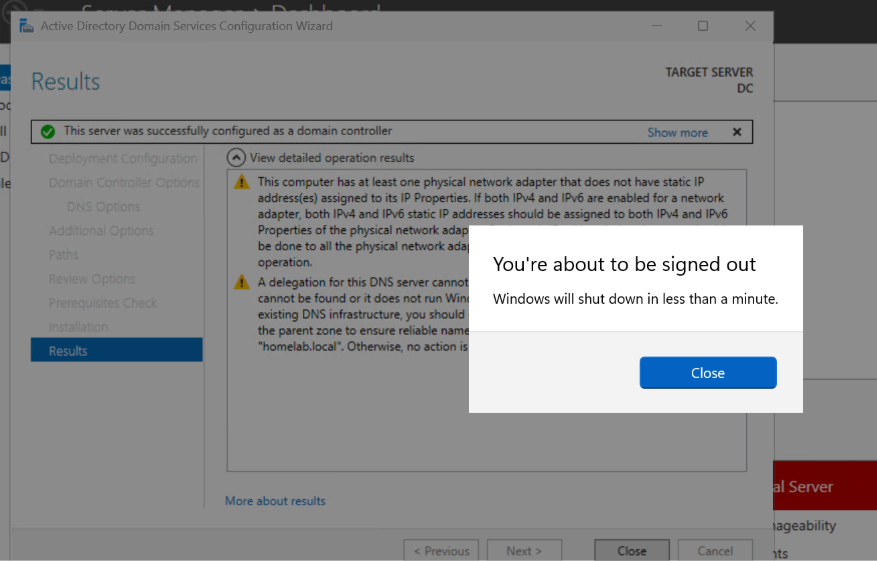

Prereq check passed and Install is now getting clicked.
DNS Manager

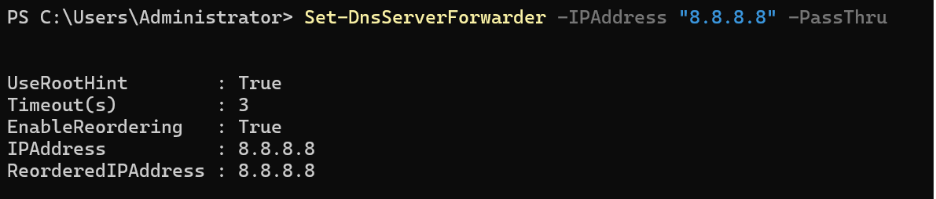

Once Complete, open the DNS Manager and setup my DNS Forwarders [MS Docs PowerShell]
Add Roles and Features Wizard
I then add DHCP, while I could have done this with PowerShell, I didn't look up the code, so I'm just using the Wizard this time. If you want to dig in, more in in [MS Docs PowerShell]
Add Roles and Features Wizard
Confirmation... sure.
Add Roles and Features Wizard
DHCP Post-Install Configuration  manager
One Complete, it shows the results, you can then click on "Complete DHCP configuration"
DHCP Post Install Configuration Wizard
I use the Admin Account that I'm currently logged on with to authorize the DHCP
DHCP Post-install Configuration Wizard
It then setups up DHCP
Virtual MAchine Connection
Now that DHCP  is installed, we need to setup a Scope.  Right click on Ipv4 and setup new Scope [MS Docs]
New Scope Wizard
Name it something meaningful to you
New Scope Wizard
You then setup your range for DHCP and your subnet mask
New Scope Wizard
If you have any machines that use Static IPs in that range, make sure you exclude them
New Scope Wizard
I left the default here
New cope Wizard configure DHCP Options
There are several DHCP options, only a few you must have, but others like PXE you can setup later
Router default gateway
I added the IP for my Gateway PC
Domain Name and DNS Server
I also make sure it has the domain name and the IP of the domain controller
WINS Server
I don't bother with WINS
Activate scope
Heck yes I want to activate the scope
DHCP Address Pool
And now I have the scope setup, as you bring machines online, and they get address from DHCP, they will start to populate here.

On the DC, you also need to install the C++ Runtime which will allow you to extend the schema for CM.  You can grab the C++ you need from the ConfigMgr Disc.

Disc\SMSSETUP\BIN\X64\vcredist_x64.exe - If you don't have that installed, you'll get errors when you try to extend schema.

So that is the fundamentals of setting up the DC.  We'll get into the Group Policy, Users and Groups in an upcoming post.  If you're following a long, at this point, you should have your gateway and domain controller. You'll want to go back and add your gateway server into the domain if you did create that before the DC.
