Building a CM Lab – Cloud Management Gateway (CMG) – Post CMG Config [17]

In our previous posts, we’ve set up the prereqs and the CMG, now it’s time to continue setting up CM to leverage the CMG.  If you’re following along with MS Docs, we’re up to here [Adding a CMG Connection Point]!

Cloud Management Gateway Connection Point

On one of your site servers, I’m using my Primary Site server which basically does everything in my lab, I’m adding the role “Cloud management gateway connection point”

Administration -> Site Configuration -> Servers and Site System Roles -> Right Click Server -> Add Site System Role

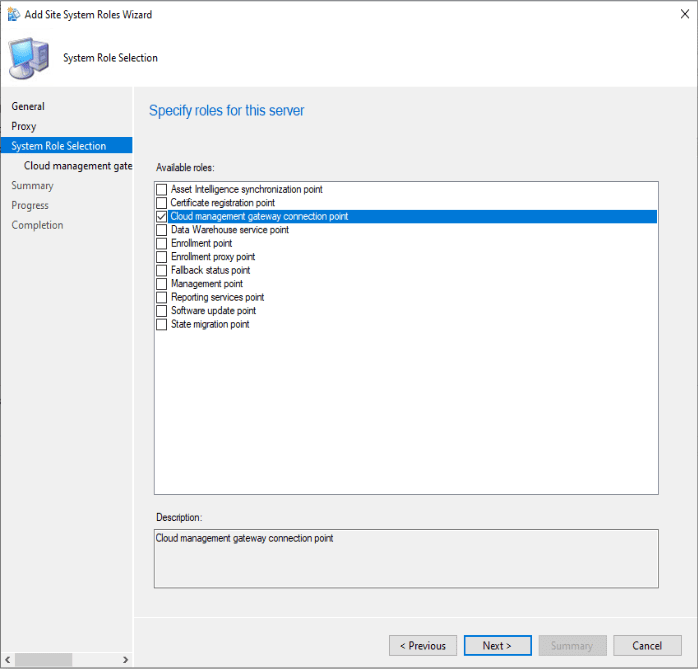

Check the box for CMG Connection Point

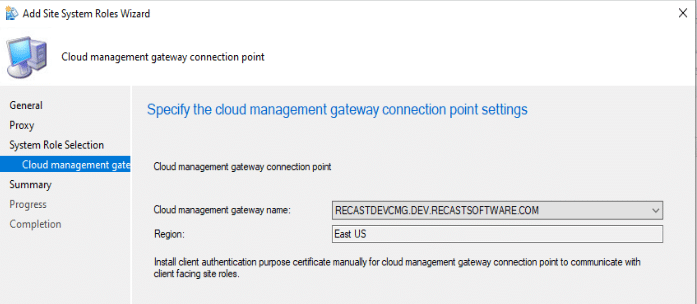

Choose the CMG you wish to associate with it, odds are good you only have one, the one you just setup.

Go ahead and finish the wizard out and let the site add the role.

Setup your site for CMG Traffic [MS Docs]

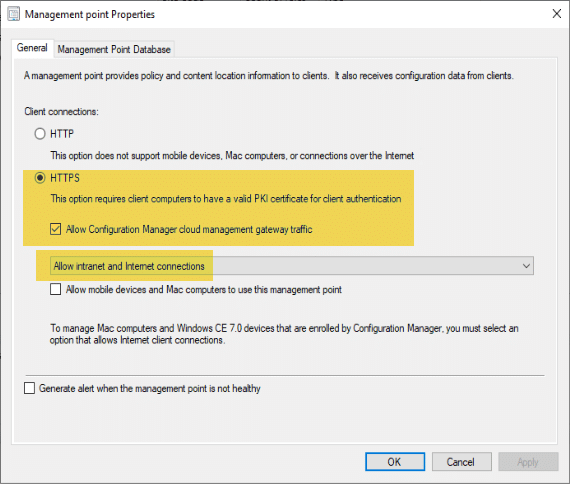

We need to let the management point know we allow CMG traffic and to allow internet connections.

Administration -> Site Configuration -> Servers and Site System Roles

Setup a Boundary Group [MS Docs]

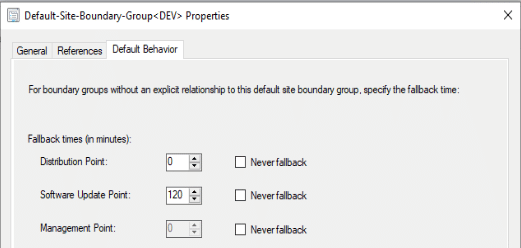

In my lab, I didn’t create a specific boundary group for CMG, I set my site to have a fallback time out of 0

Set Client Settings [MS Docs]

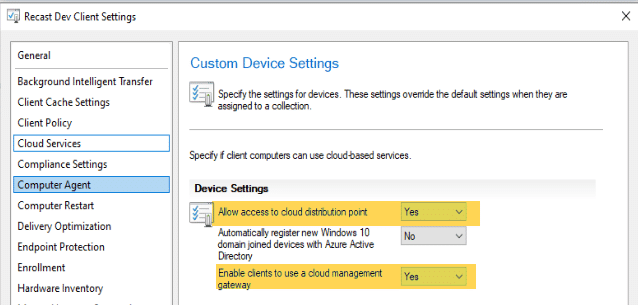

Cloud Services: Allow access to cloud DP = Yes | Enable clients to use CMG: Yes

Alright, so now that everything is set up, You’ll need to decide, what content you want to make available via CMG. Hopefully, you’ve got MS Updates set up to go back to Microsoft, so you don’t need to keep those on your CMG.
In the Next post, I’m going to demo pushing content to the CMG and then showing a client on CMG install an app.
