Task Sequence Steps

Capture and Apply Network and Windows Settings Steps

This post is part of our Task Sequence – Beyond the Docs series.

This is an overall combination page, the steps all work so closely together, that for Demos it would be difficult to break them apart. I went back and forth about creating individual pages, so I’ve done both. I created individual pages that give a very high-level overview, then for demos, linked here.

Let’s go into the demos now, since the individual details are in the posts above, let’s use the steps together, as they would in the real world.

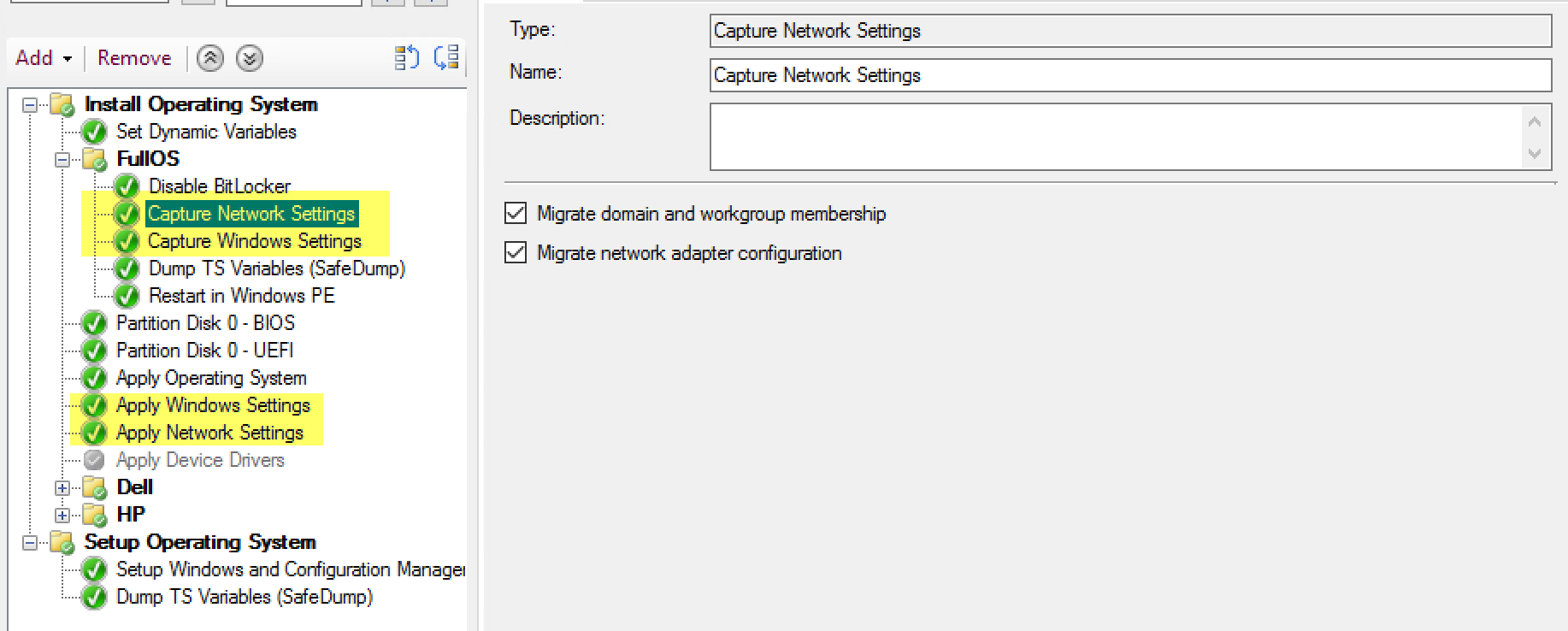

This will be a very simple Task Sequence to be able to easier highlight these steps.

Settings 01

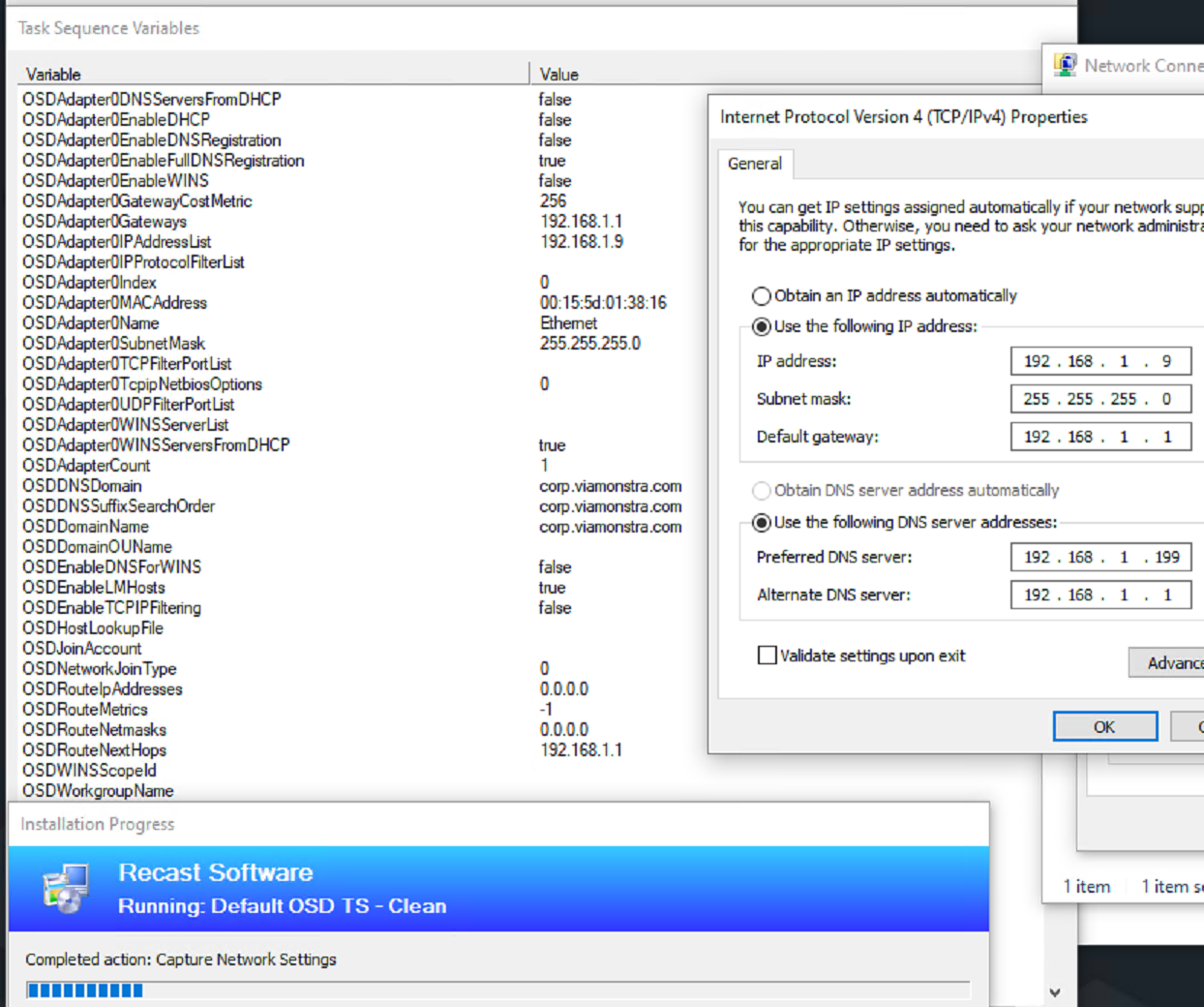

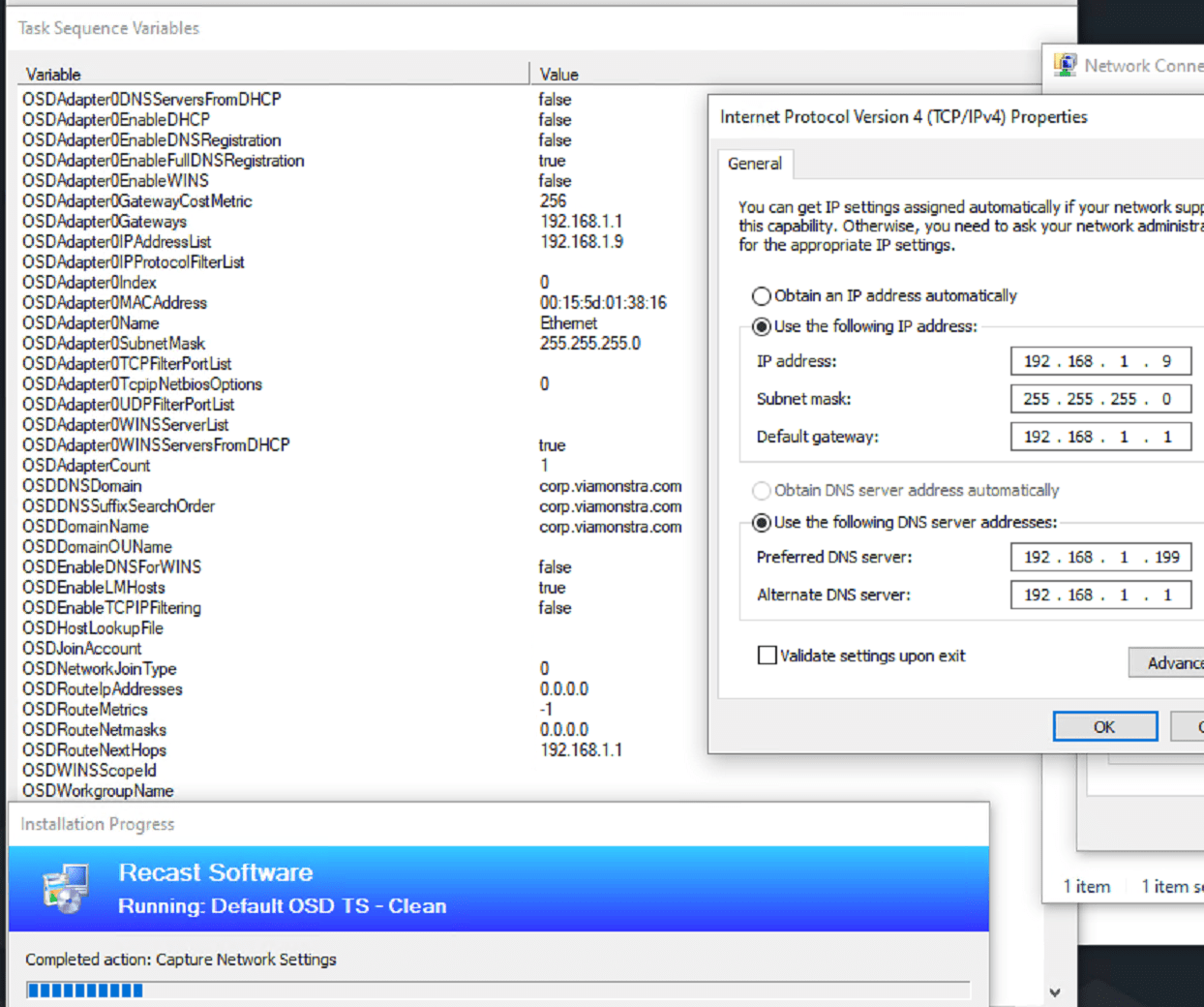

In this Demo, we’re going to start in the OS and do a “Refresh” of the OS, so we can capture settings. My demo machine has a Static IP address, and I’ve set several other custom fields.

Image 01
Image 02

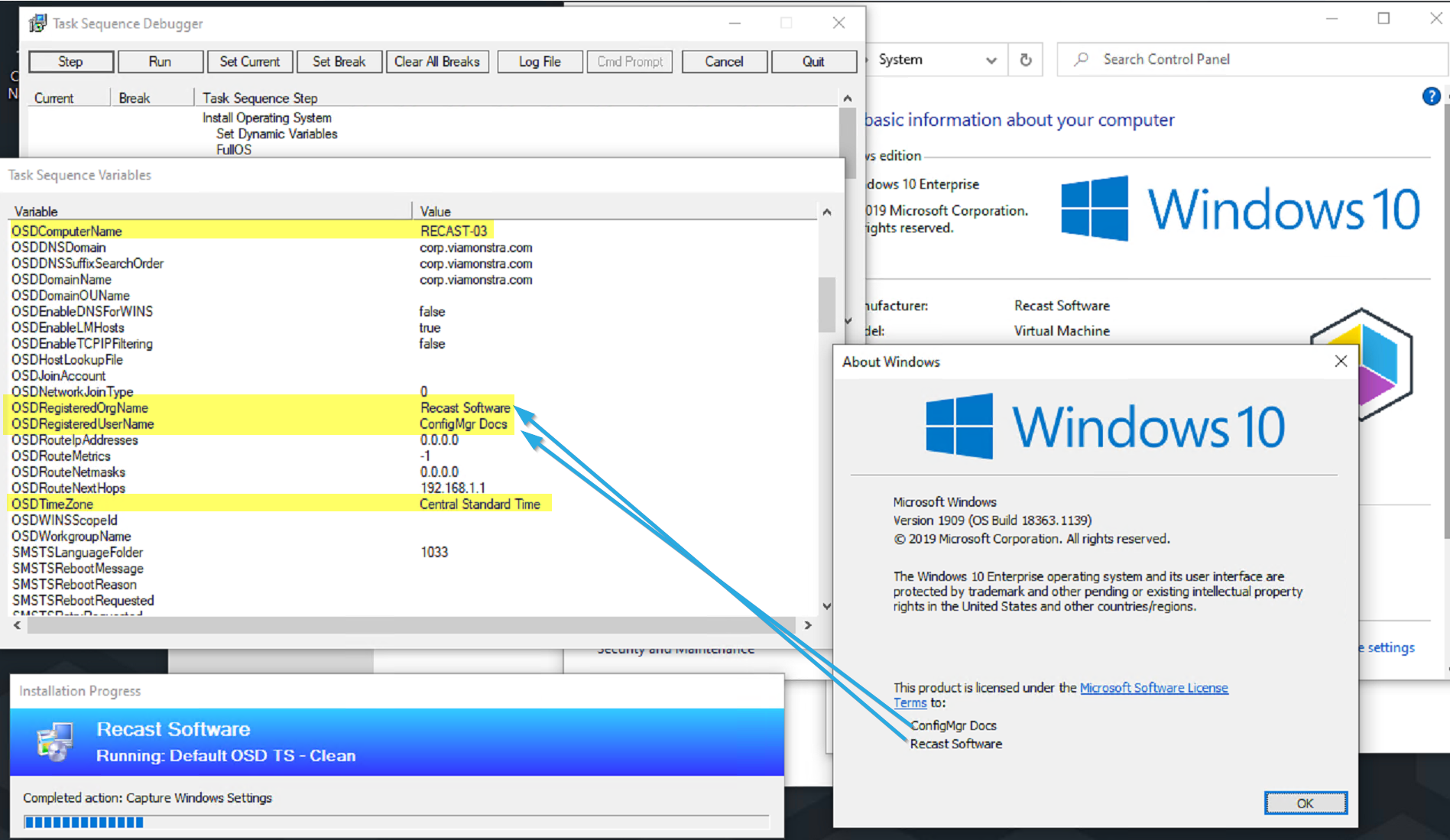

As the Task Sequence starts in the Full OS, it runs the capture steps, and you can see it populating the information into Variables.

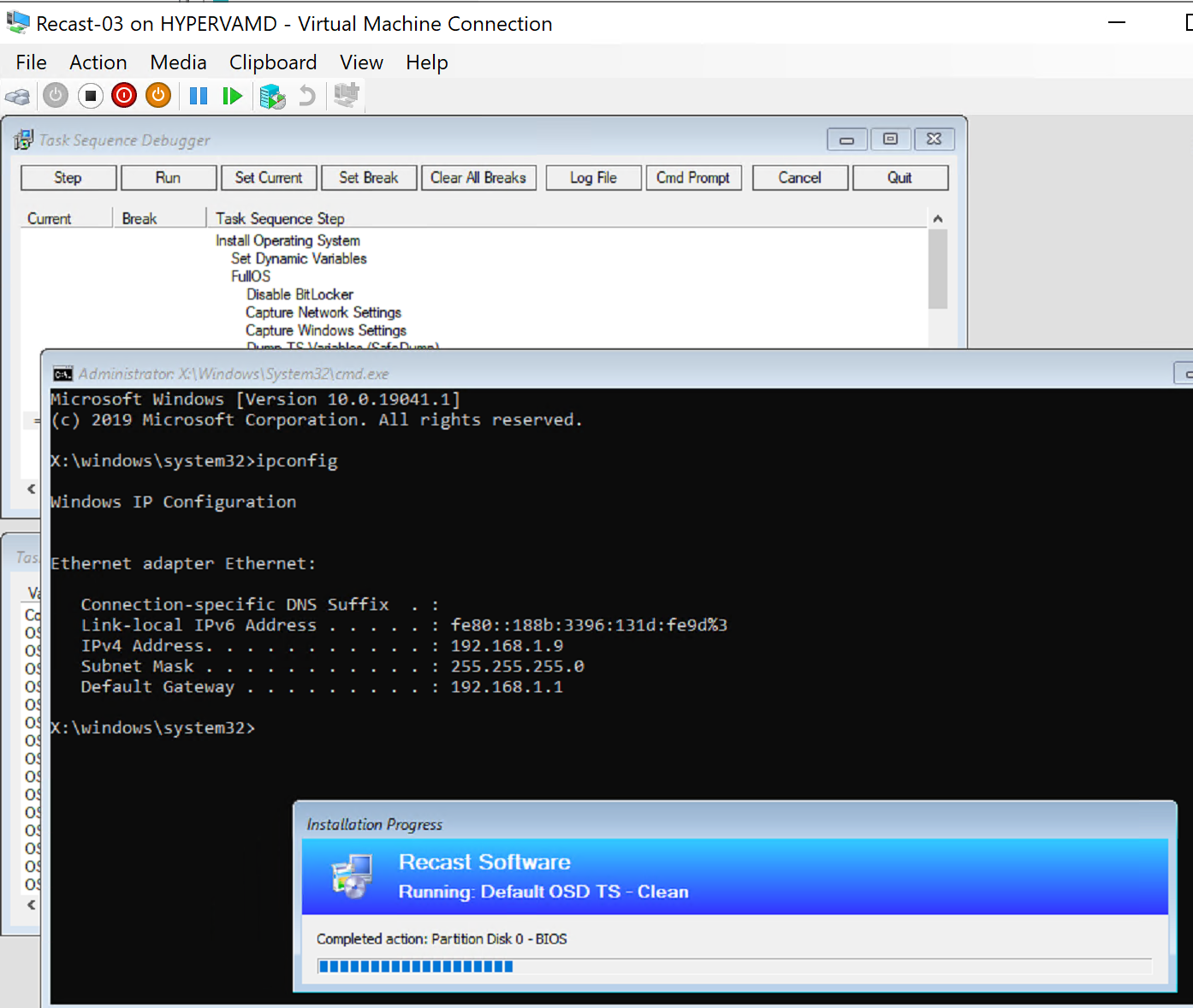

The Task Sequence then reboots into WinPE to format the drive and apply the image. I’ve run ipconfig showing that WinPE has already applied the static IP Address used in the Full OS.
Image 03

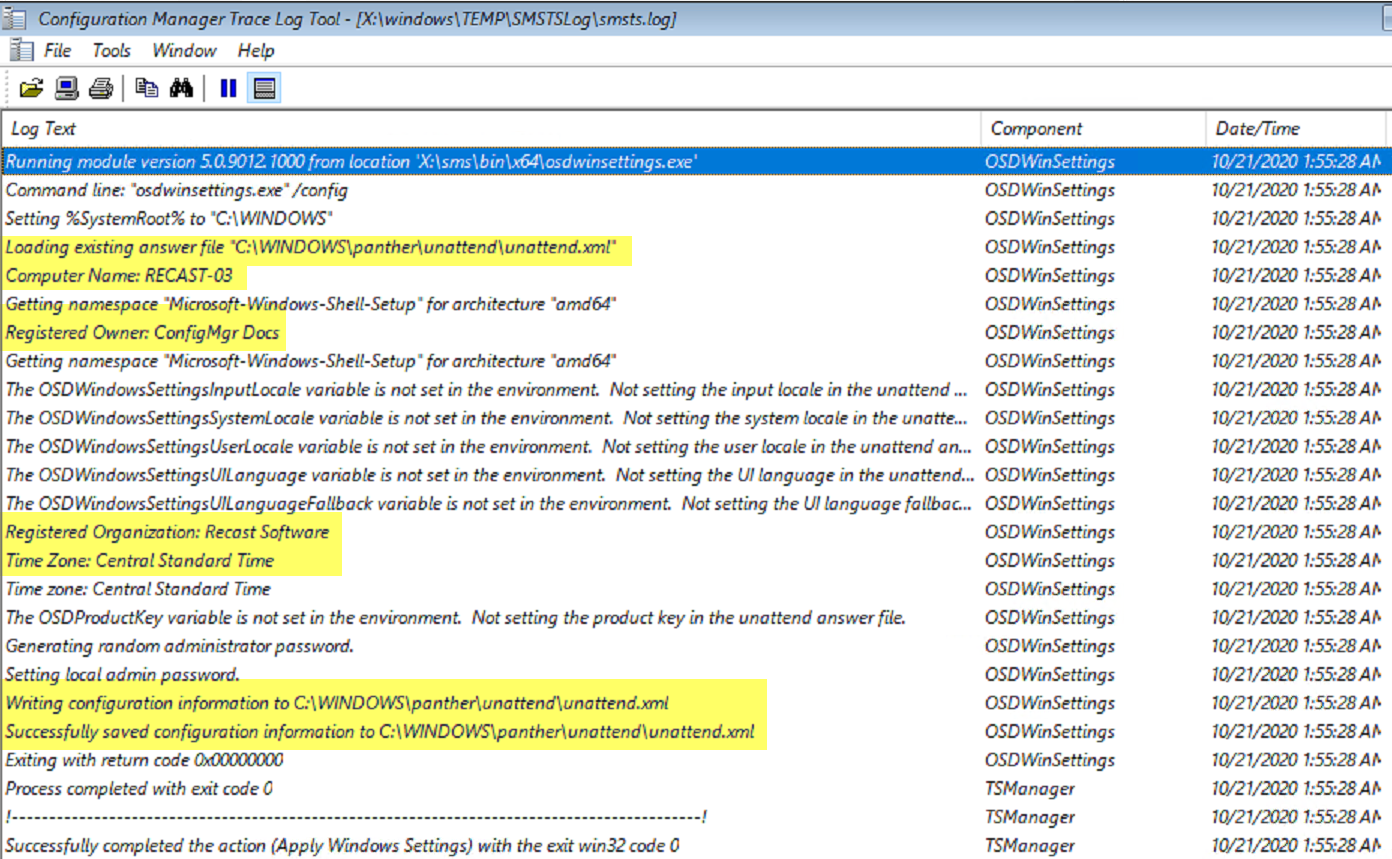

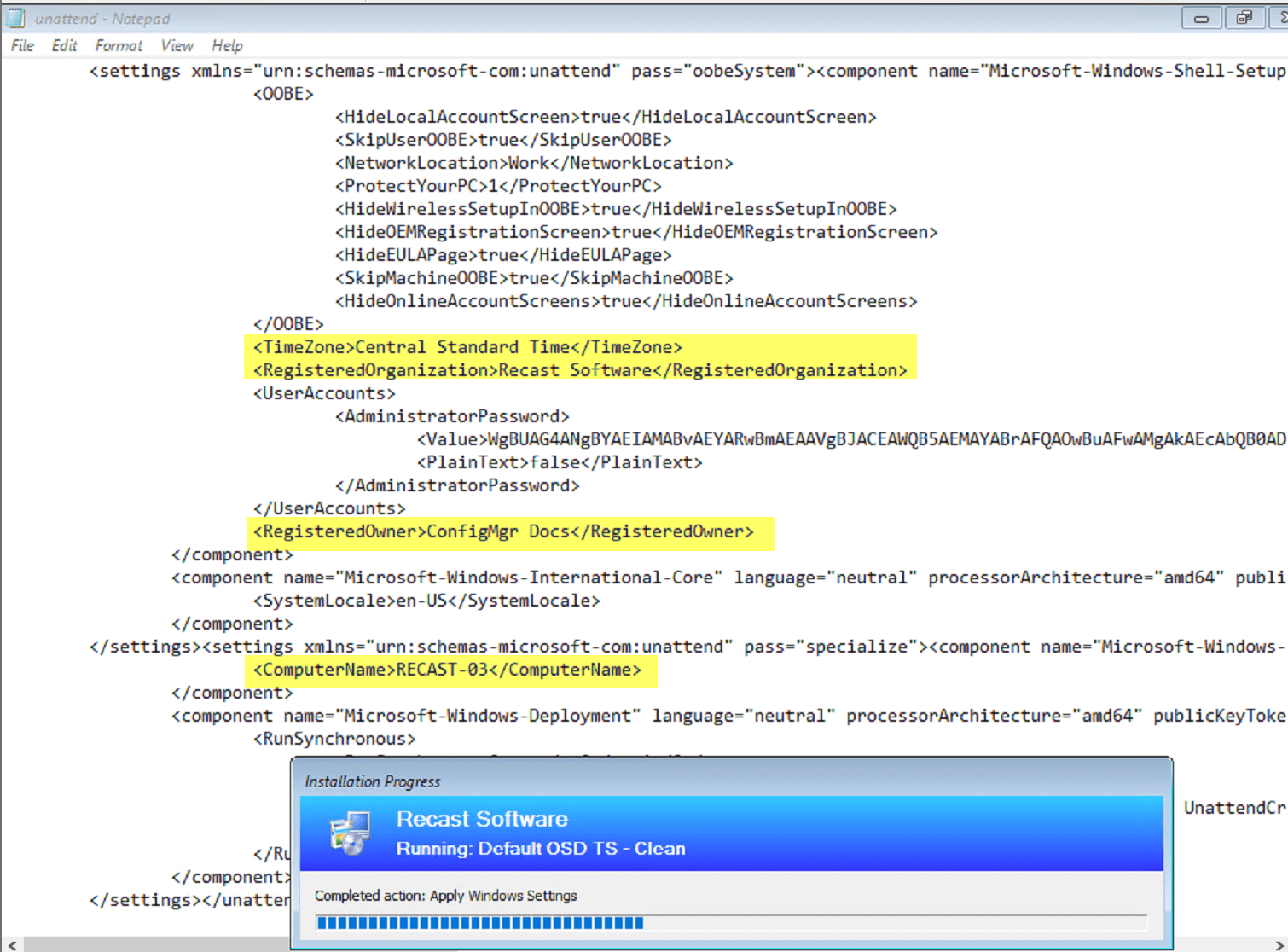

When the Apply Windows Settings Step runs, it loads the unattend.xml file, takes the variables you’ve captures (or manually set), and injects them into the XML file.
Image 04
Image 05

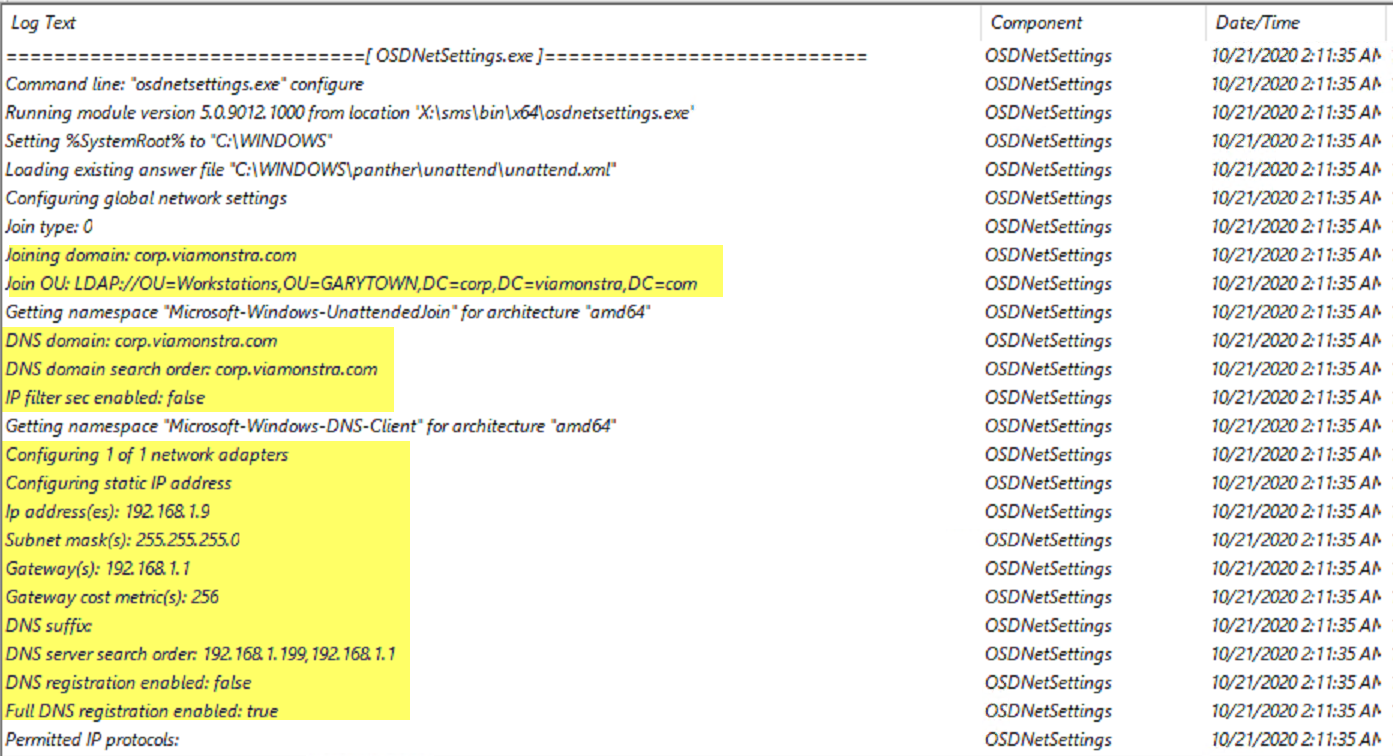

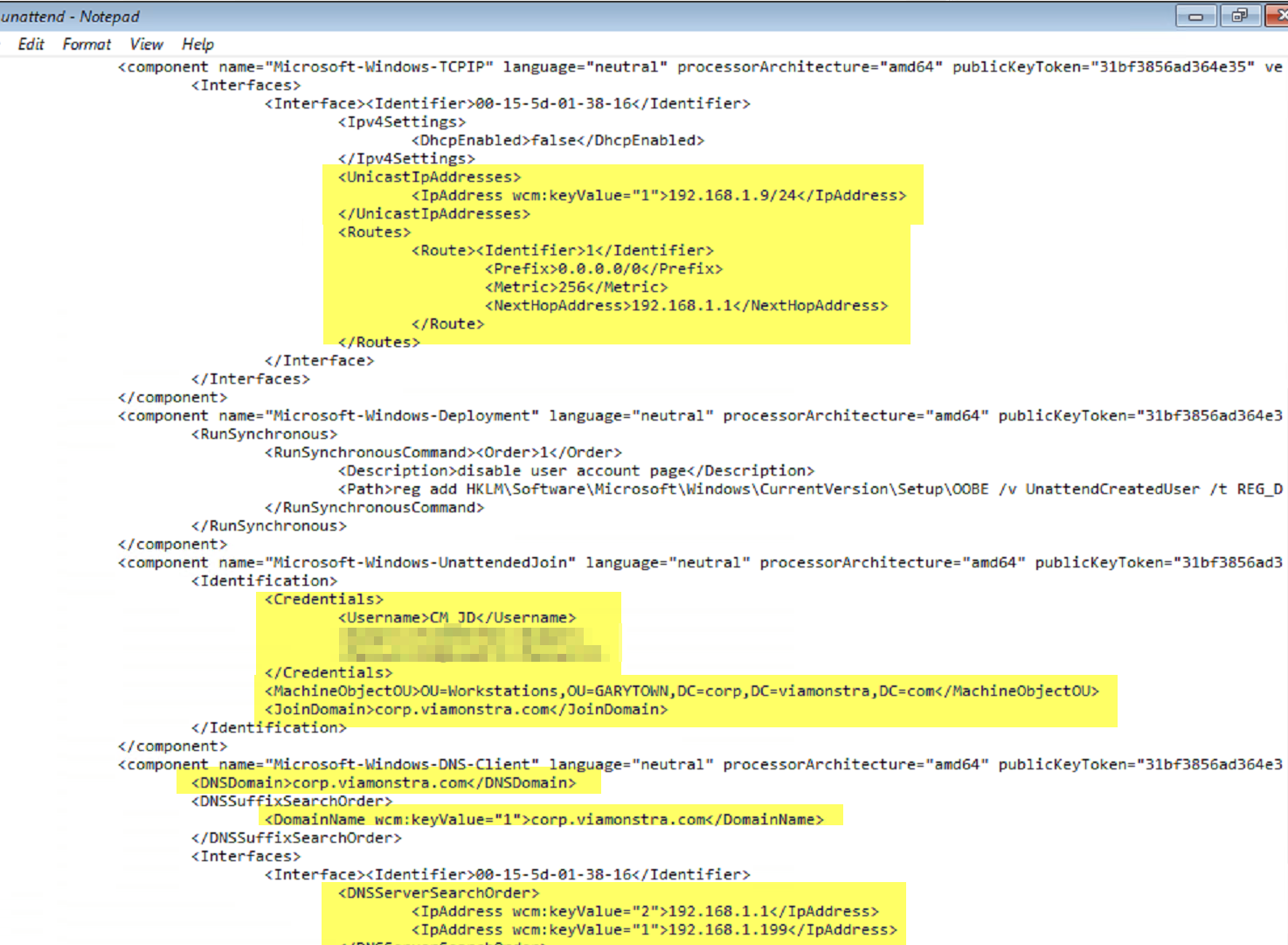

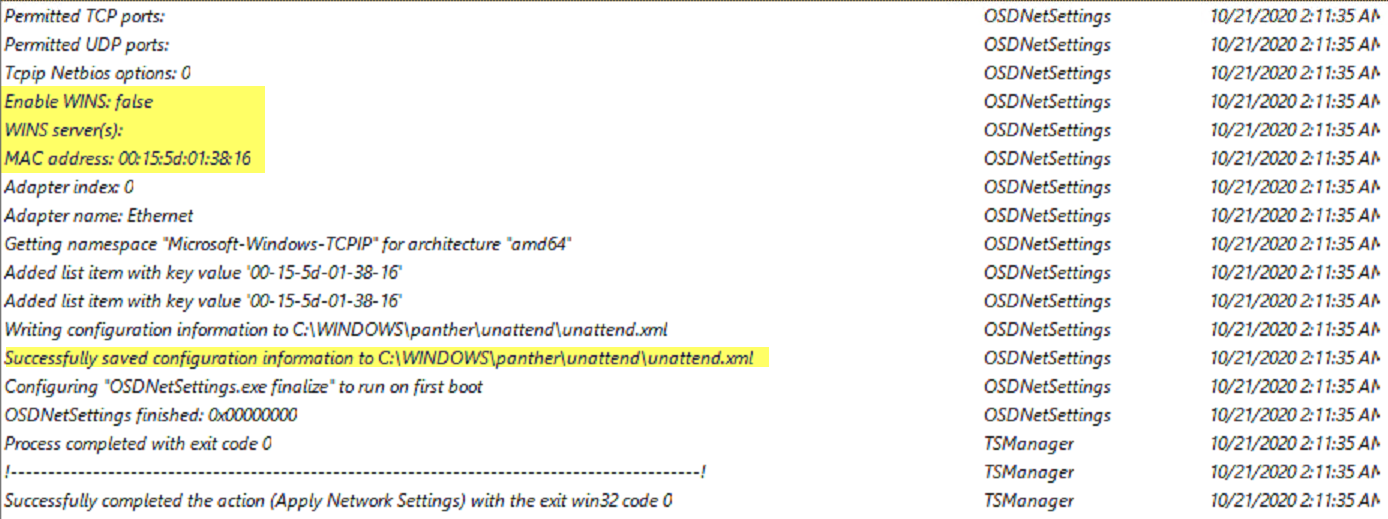

After the Apply Windows Setting step finishes, it moves on to the Apply Network Settings, where we see similar behavior where it takes the information captured and injects it into the unattend.xml

Image 04
Image 05
Image 06

At this point, all of the information is in the Unattend.XML file which will get applied to the machine during the “Setup Windows and ConfigMgr” step.

To see more details about that, check out the page for that step: Setup Windows and ConfigMgr
