Building a CM Lab - SQL Reporting Services (SSRS) [12]

In post 12, we'll cover reporting.

So you've got your CM Server and some clients, now you want to surface that data via reporting. [MS Docs] Sure Power BI is cool, but who has money for that, SSRS is included and there are some pretty nifty free reports in the community.  In this post, we're going to be installing SSRS 2019, along with getting it configured then installing the Reporting Service Role in ConfigMgr. [SSRS 2019 Download Link]

If you're a Recast Enterprise Customer, we have some great dashboards and reporting built in, which makes surfacing the data quite easy, right in the console.  Just a quick shameless pug, because I really like our dashboards. [More Info]

Requirement: SQL Service Account setup in AD (CM_SSRS), in SQL_Admin Group (Which has admin rights to SQL, see the SQL Install Post for more info)

First, I launched the SQL Server Setup from the start menu:

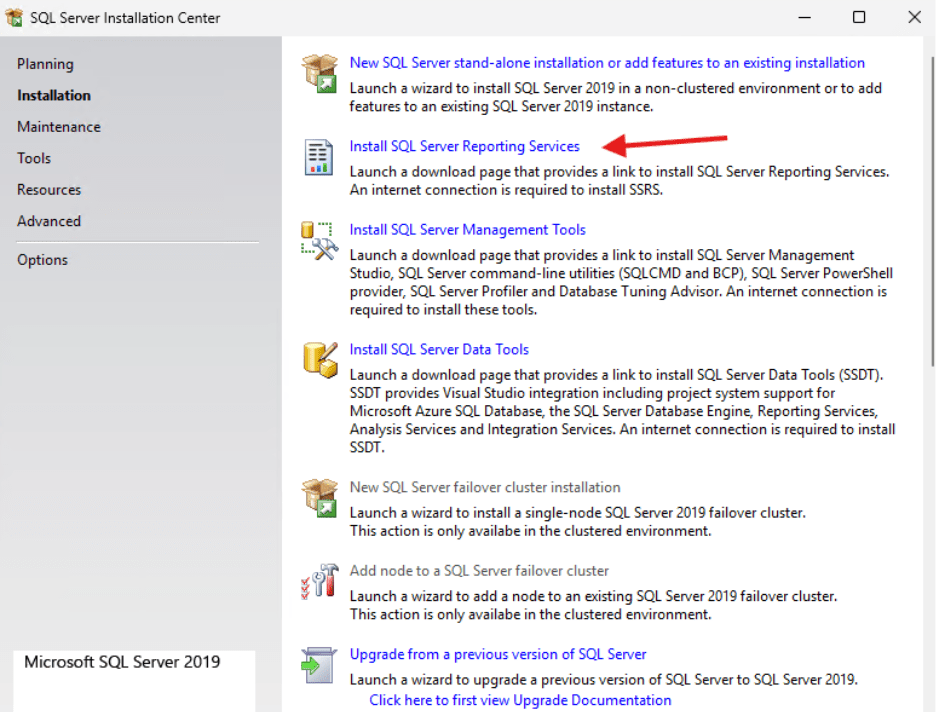

SQL Server installation Center
On the Installation Tab, chose "Install SQL Reporting Services" That will launch your browser to:

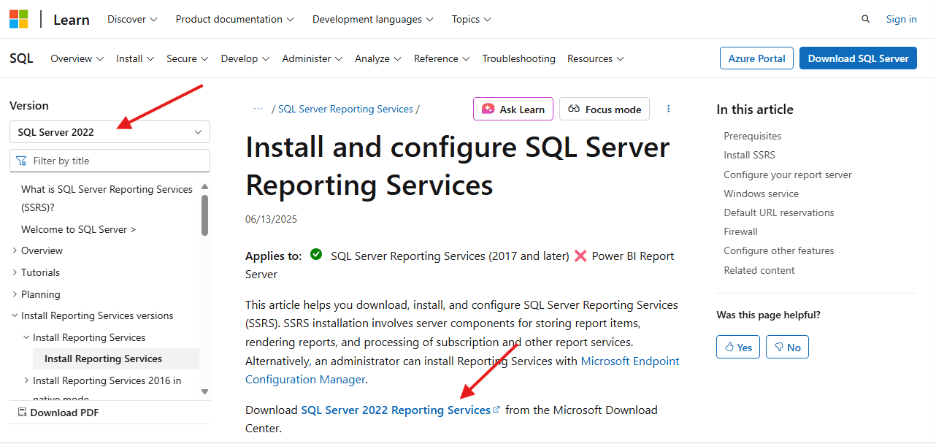

Install SQL Server Reporting Services
Click "SQL Server 2019 Reporting Services" download
Microsoft SQL Server Reporting
Download
Microsoft SQL Server Reporting Services
Click on Install Reporting Services
Microsoft SQL Reporting Services

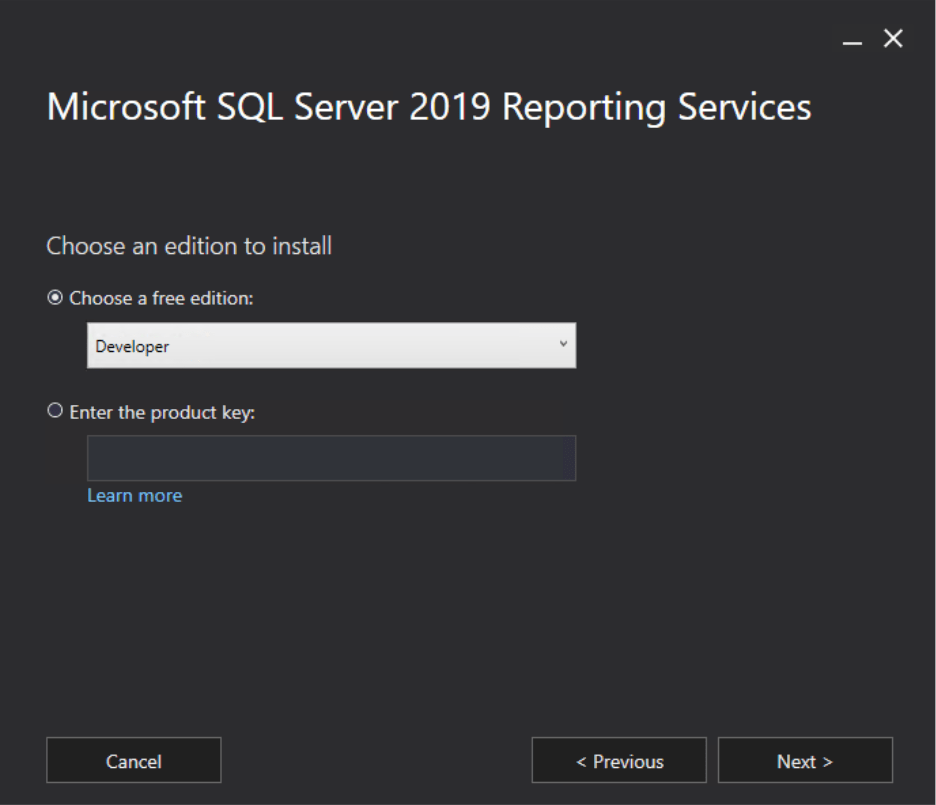

For my lab, I'm using the Developer Edition, of course if you're using this in production, enter your product key
Microsoft SQL Server Reporting Services
Sure, I accept
Microsoft SQL Server Reporting Services
Next
Microsoft SQL Server Reporting Services

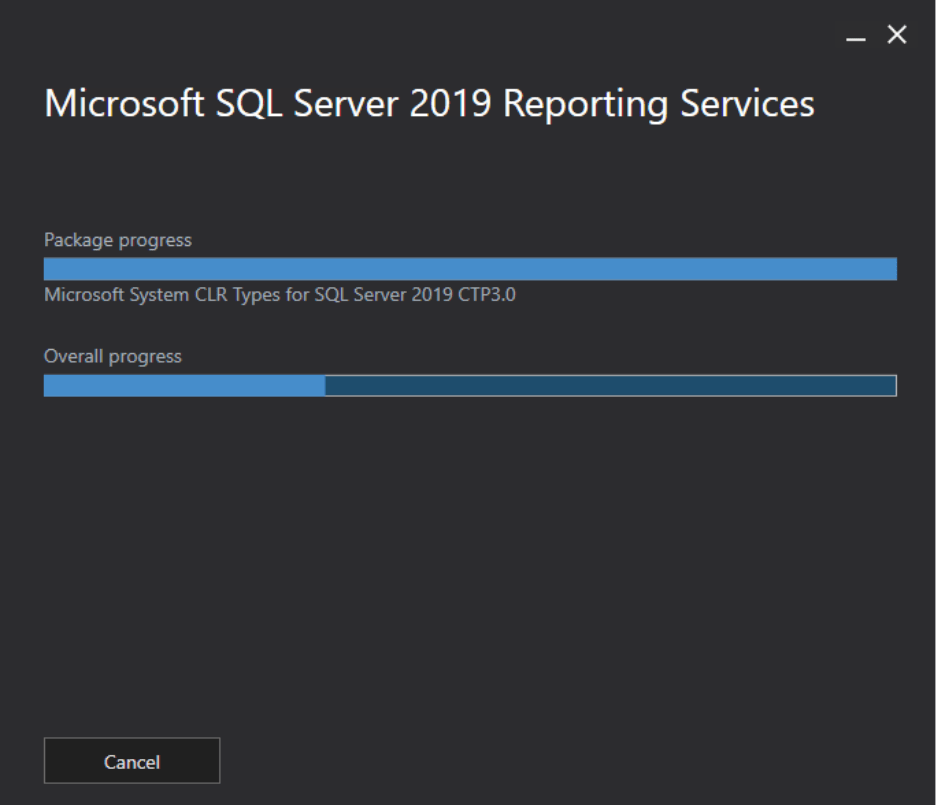

and now we watch the progress bar....
Microsoft SQL Server Reporting Services
Ok, lets Configure report server
Report Server Configuration Manager

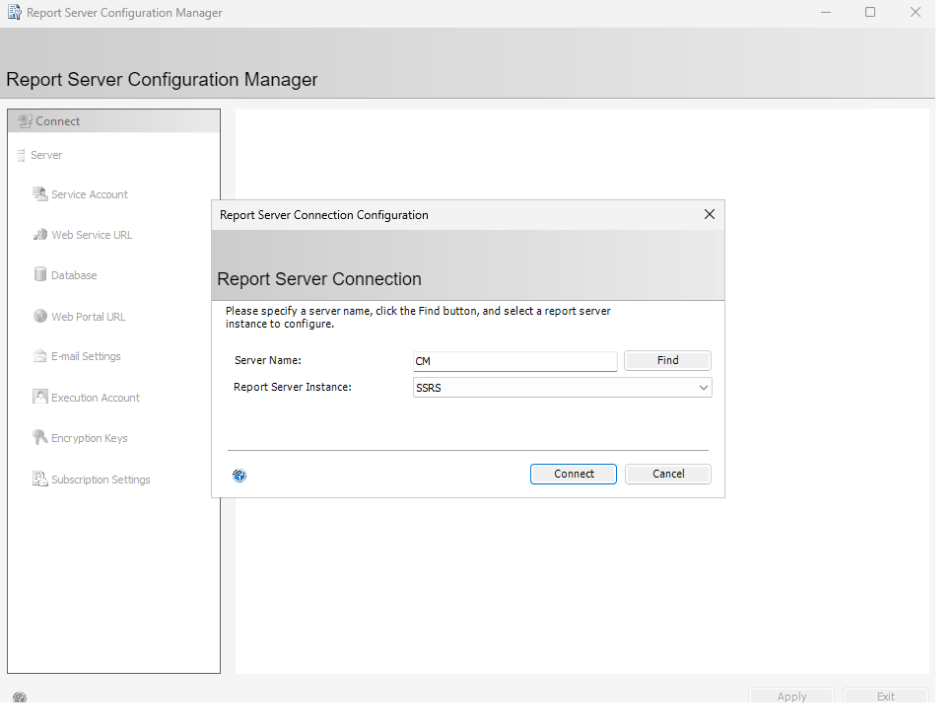

Yes, Connect, thank you very much
Report Server Configuration Manager

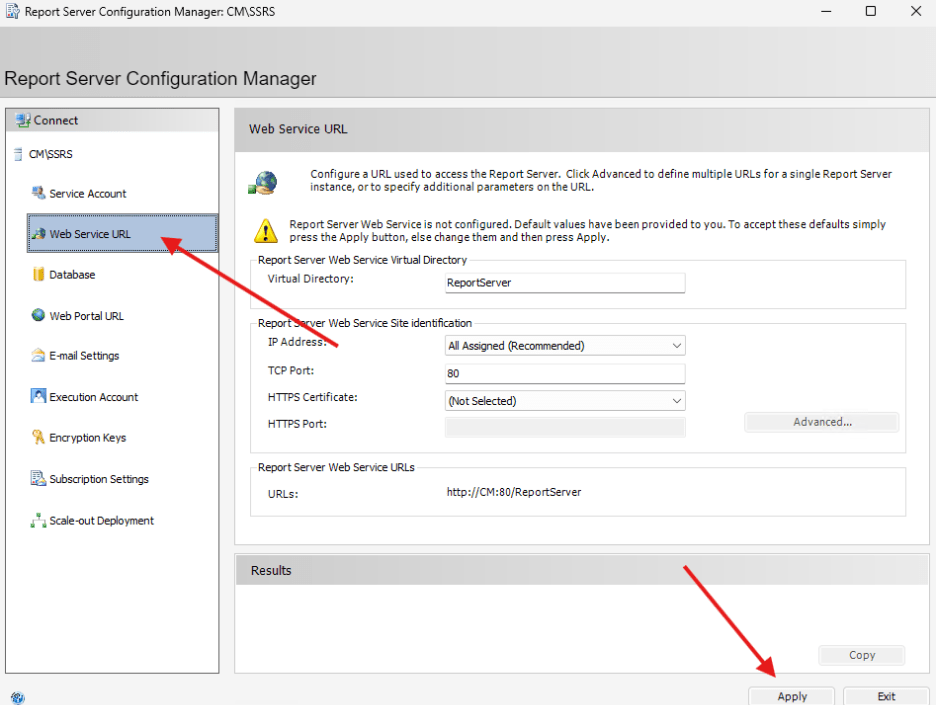

Click Apply to setup the Virtual Directory
MEMCM SQL Server Reporting Services
And confirmation that it is setup...
Report Server Configuration Manager

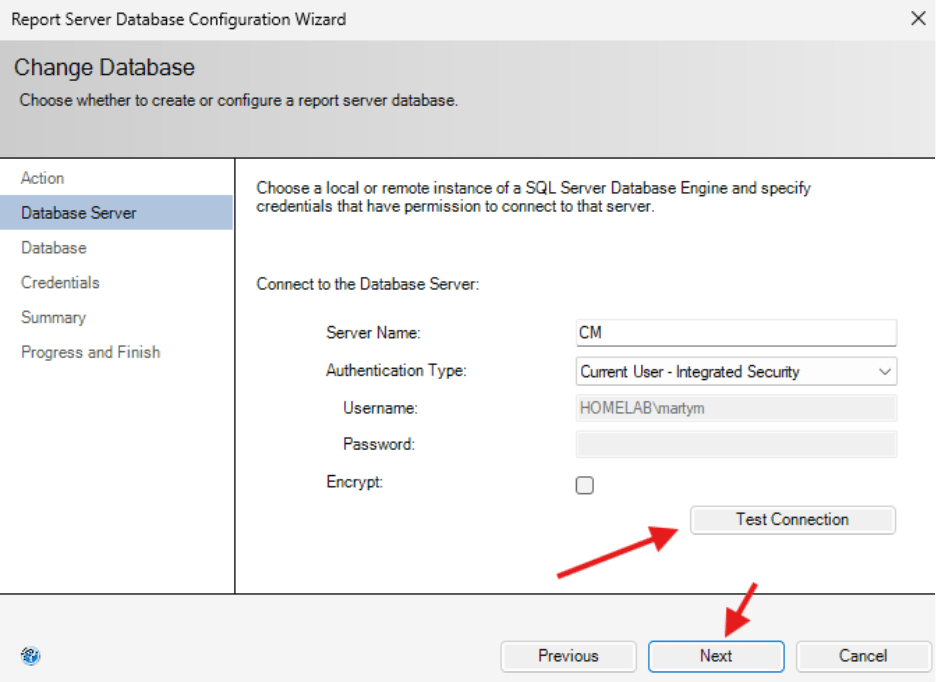

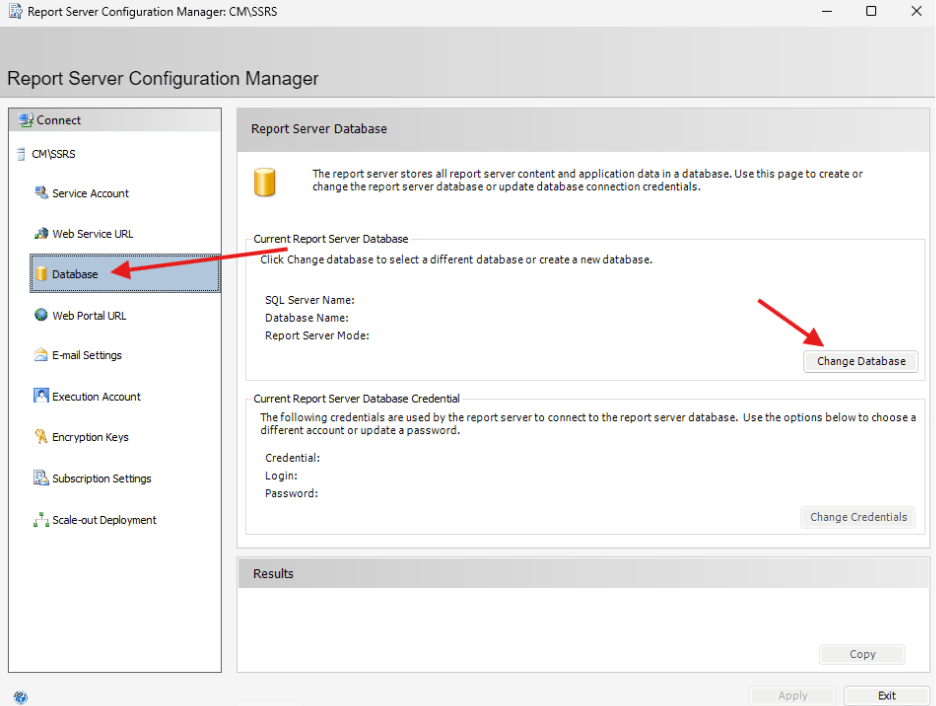

Time to create the Database
Report Server Configuration Manager
Report Server Configuration Manager

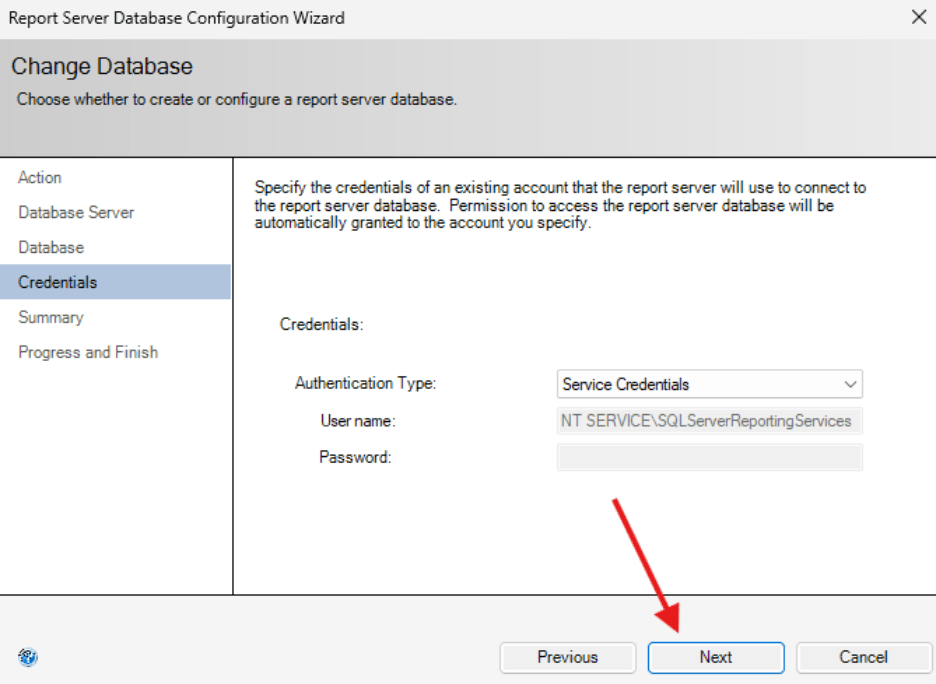

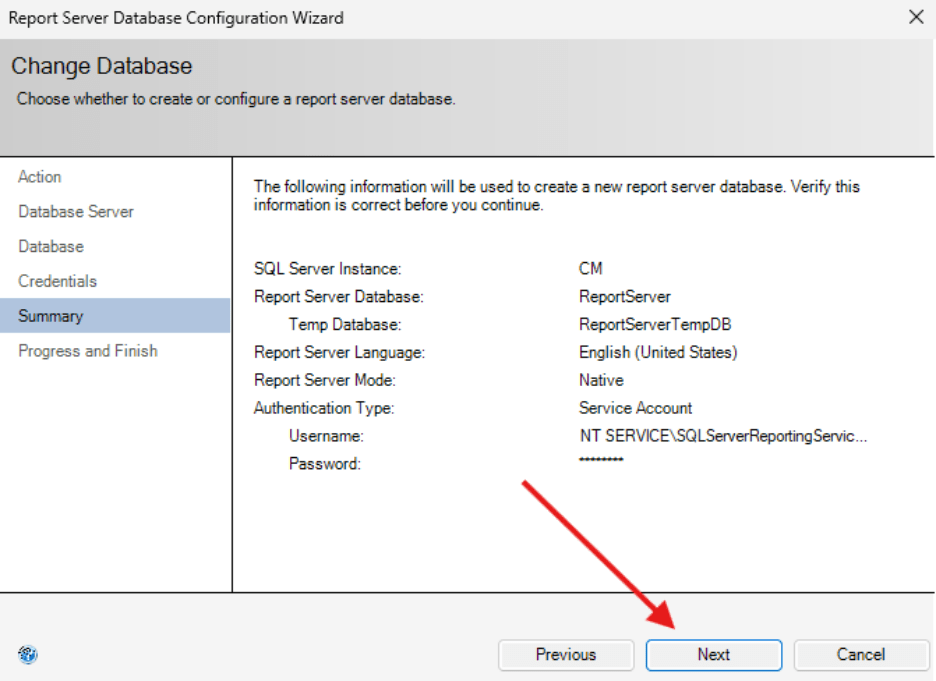

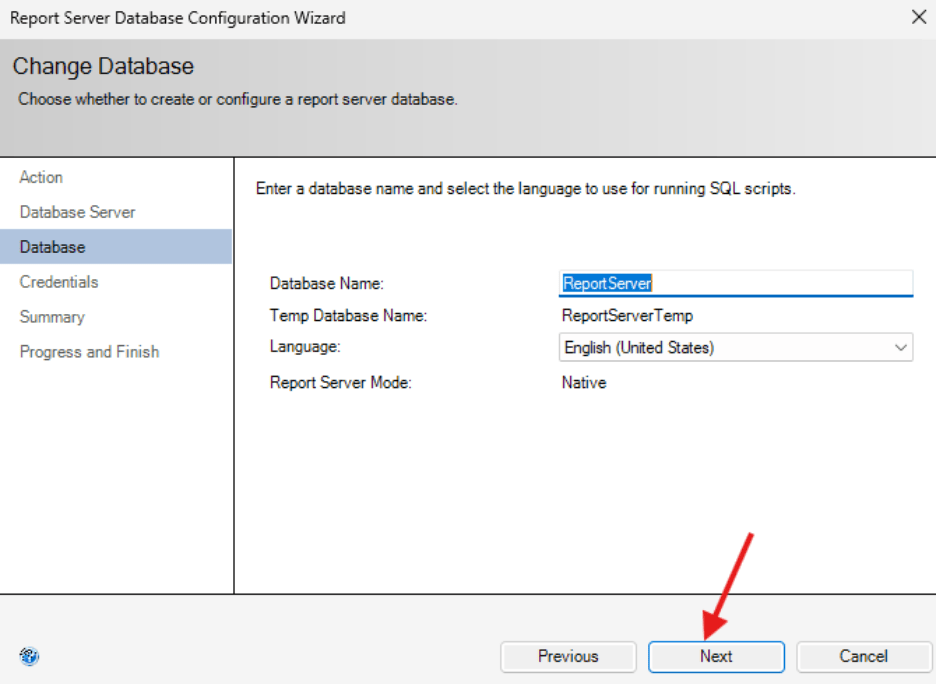

Report Server Configuration Manager Database
Report Server Configuration Manager Database
Report Server Configuration Manager Database
Report Server Configuration Manager Database
Report Server Configuration Manager Database

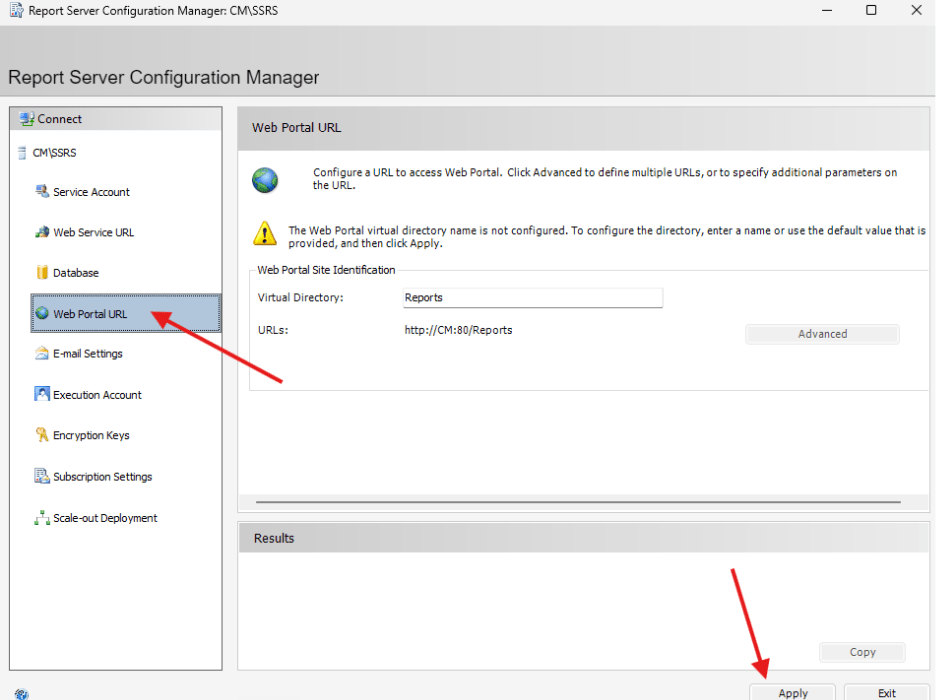

in the Web Portal URL, click Apply
Report Server Configuration Manager Web Portal
Alright, now we should be done getting it configured, lets confirm the database.
MEMCM Virtual Machine Connection

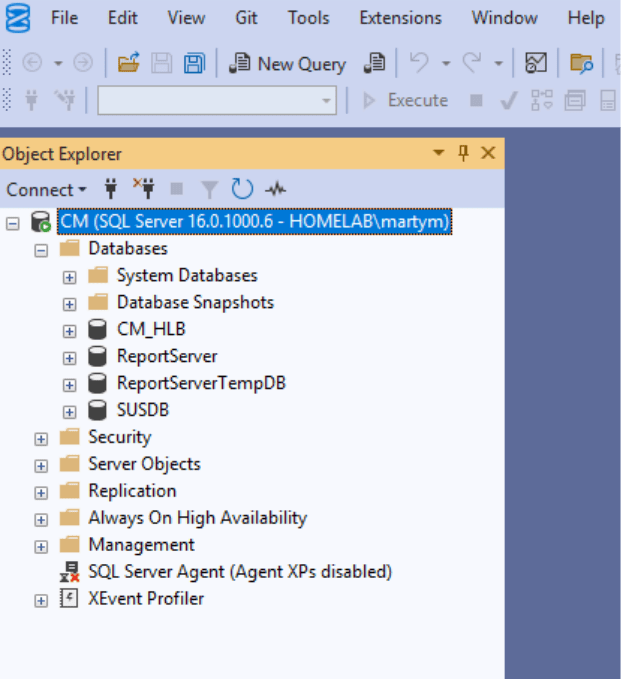

You can launch MS SQL Server Management Studio and you'll see the new ReportServer databases

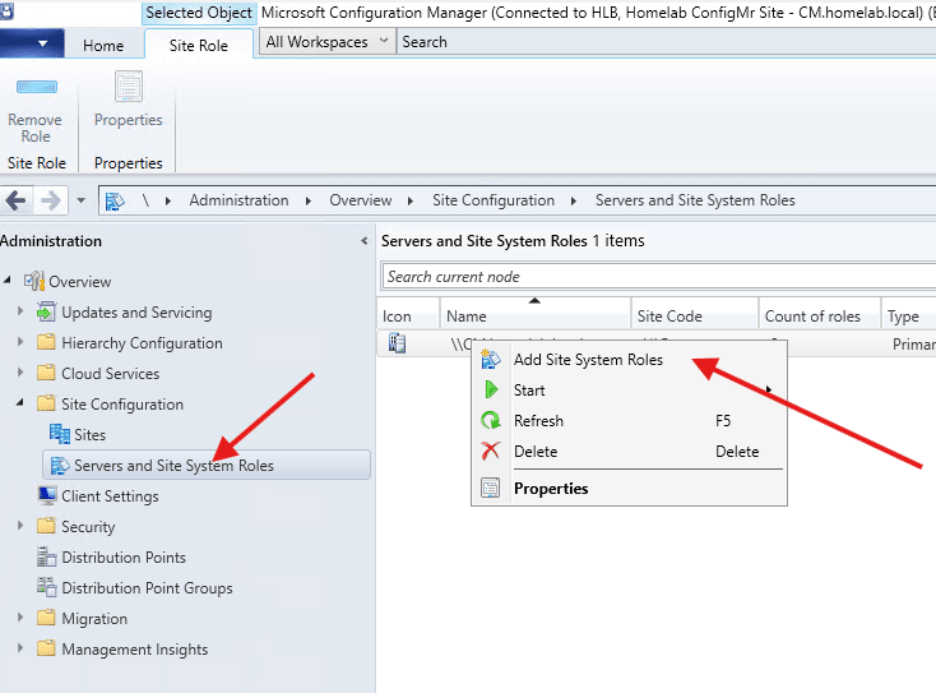

So now that we've Installed SSRS and had it configured, we can add the Reporting Role... so in the CM Console, the Administrator Tab [MS Docs]

Microsoft SQL MEMCM

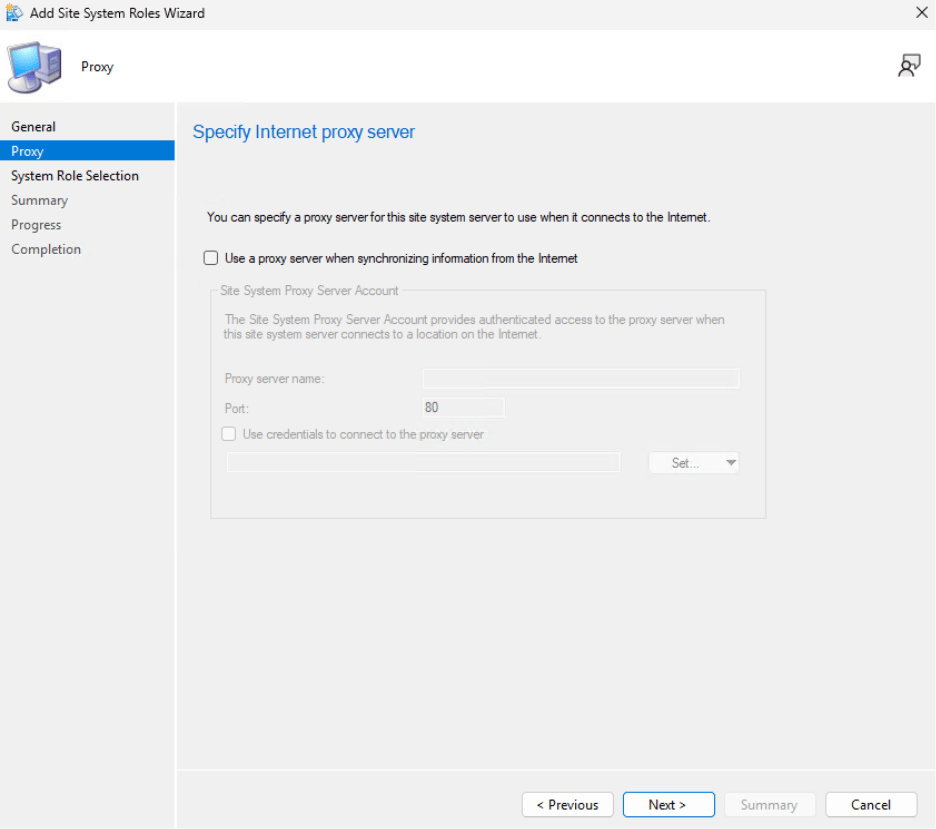

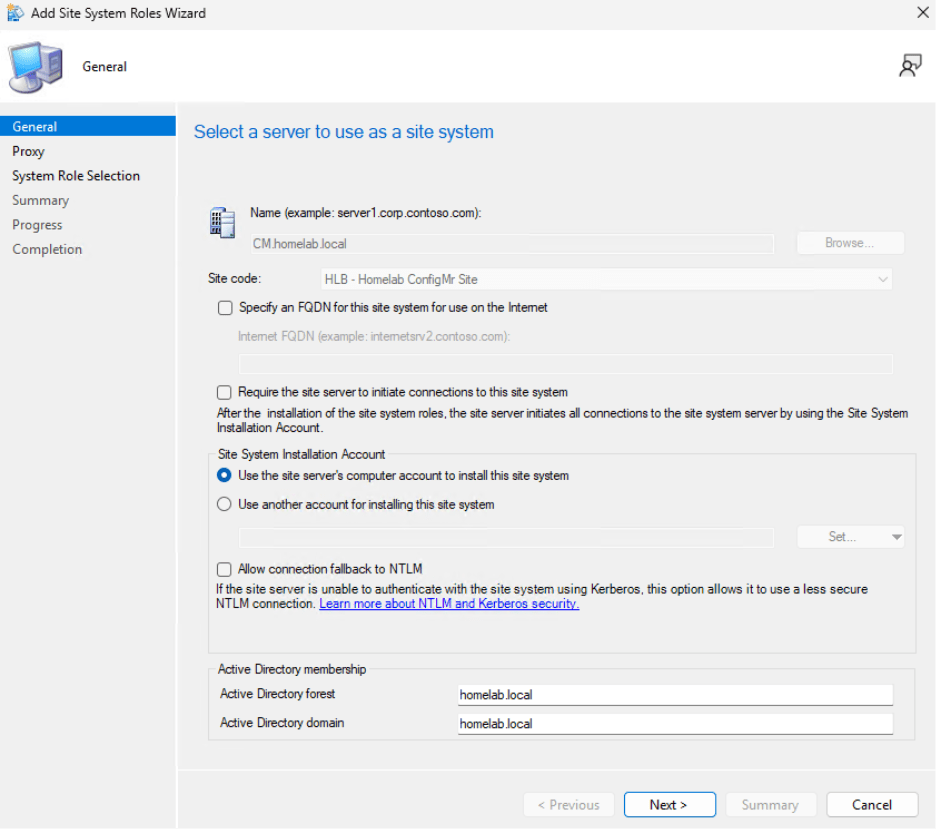

Add Site System Roles Wizard
Add Site System Roles Wizard

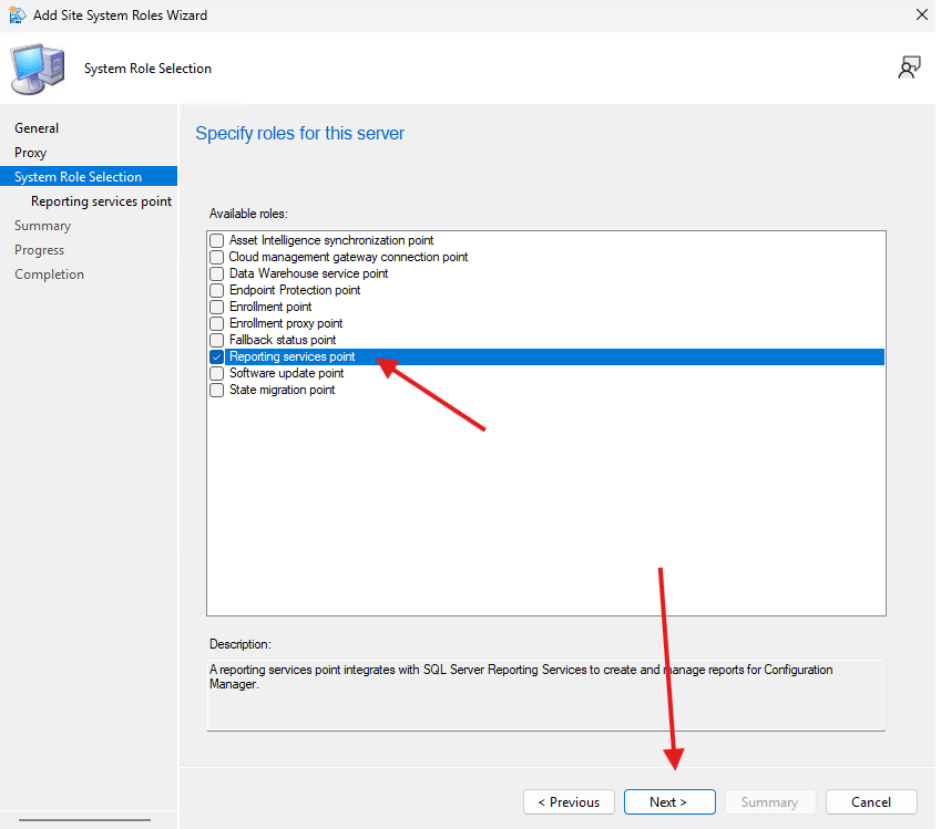

Choose Reporting Services Point
Add Site System Roles Wizard

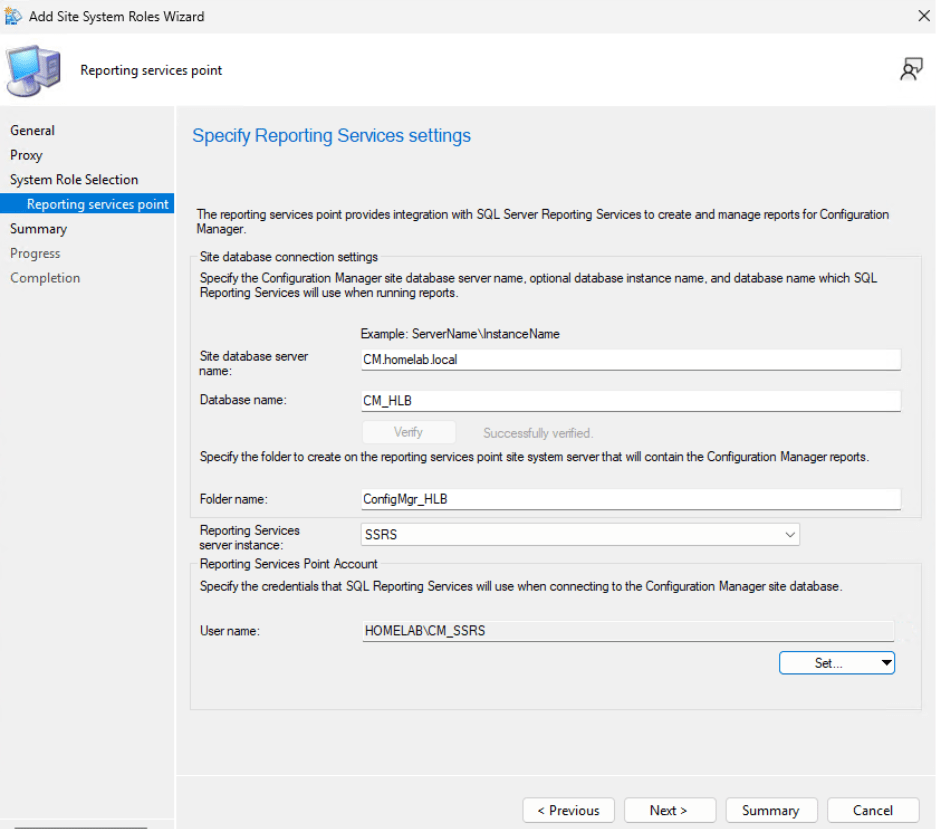

Here is were you add the SSRS Service account that you setup.
Add Site System Roles Wizard

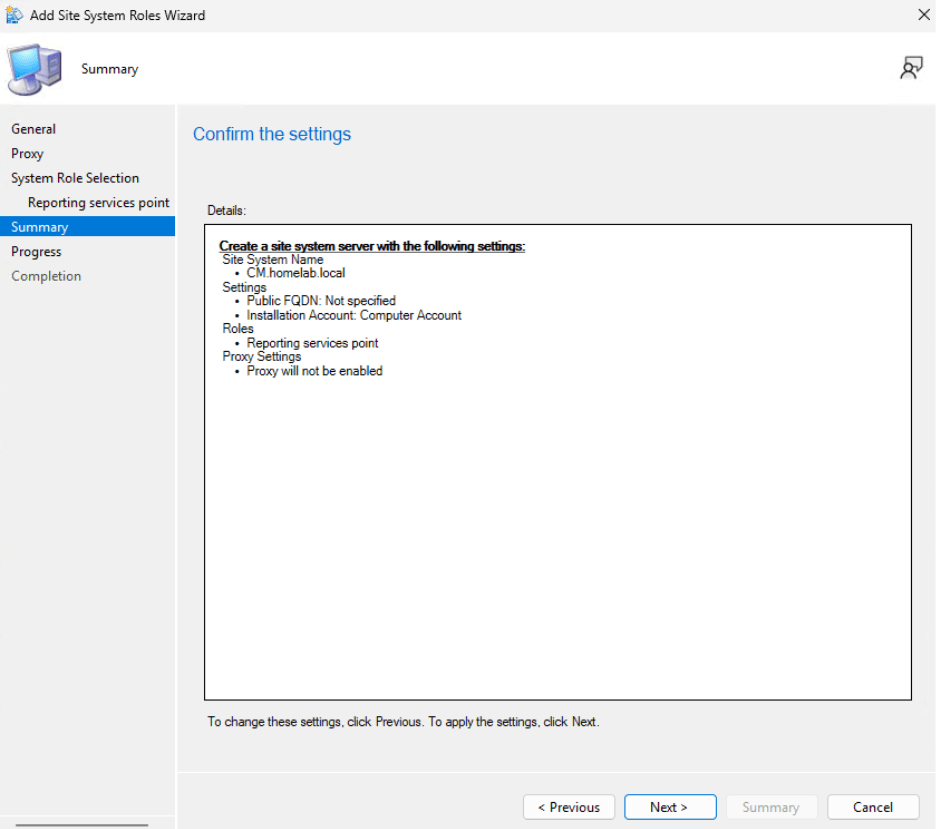

Add Site System Roles Wizard

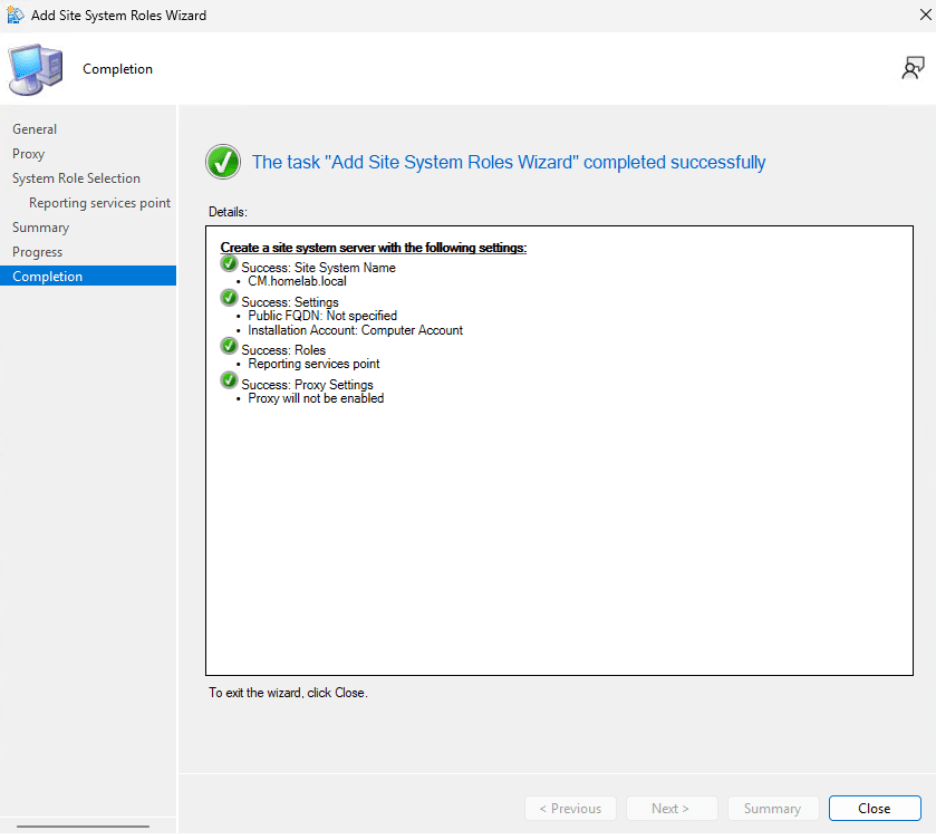

Ok... and now it is setup.

So now I've waited a bit, had dinner and came back to check things out..

Site Status

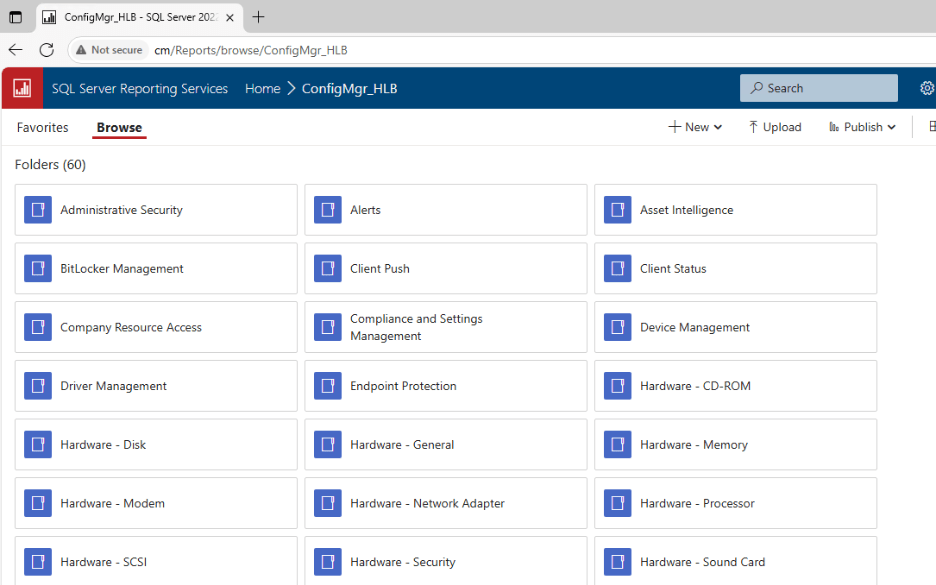

SQL Server Reporting Services
Excellent!
SQL Server Reporting Services
Look at that nice report.

If you setup the Certificate Authority, you can then add a cert and make this HTTPS... if you want.
